Hand stampModel D28b
You are here:
Stamp, Dater with textplate D28b
made in germany.jpg
  • textplate made to individual requirements
  • date in figures or with abbreviated months
  • month wheels to suit most languages
  • date is set by thumb lever

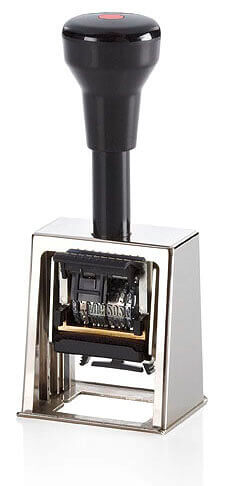

The handy date stamp model D28b combines date with text options in a compact design. The brass text plate can bear multiline custom engravings.

All components of the date stamp are "Made in Germany" - are thus completely produced and assembled in Germany. Wheels and housing are made of die-cast zinc and thus durable and high quality.
Order No.Sample PrintsA ↕
141 000-900D28b; Order No.: 141 000-900; 4.0 mm (72dpi)4.0 mm
141 000-120D28b; Order No.: 141 000-120; 4.0 mm (72dpi)4.0 mm
141 000-136D28b; Order No.: 141 000-136; 3.0 mm (72dpi)3.0 mm
TemplateD28b; Order No.: Template; 4.0 mm (72dpi)4.0 mm

Technical Data

Prints:Date, Text
Action:Thumb lever
Textplate size:35 x 20 mm, brass unengraved
Wheels and body:Die-cast
Figure size:3.0 mm (only round text plate), 4.0 mm
Date format:DE, EN, ARAB, ISO, YY, YYYY
Figure style:Block
Net weight:about 330 g
You are here:

Advantages at a glance

kzg made in germany flag.svg
Made in Germany

Developed, produced and assembled in Germany.
kzg handheld scanner.svg
Mobile use

Portable and flexible integration at any point in the production chain.
kzg wischfest.svg
Smudge-proof

No smearing thanks to fast-drying ink.

kzg objektvielfalt.svg
Object diversity

Flexibility of the objects to be printed in the form of round, angular, curved.

Download

downloads-intro-rwd
Product datasheet D28b en00
Product datasheet D28b en
PDF · 714,46 KB
REINER Gesamtkatalog 251016 EN00
REINER® brochure: Hand Stamps
PDF · 3,79 MB
REINER D28bff ZN 140080 000 web00
Operating Manual D28b
PDF · 592,28 KB

Accessories

Inked Pads incl. Pad HolderblackSuitable for: D28b
222047 000.jpg
Order-No.:222047-000
Color:black
Width of inner frame:
Pieces:6
Inked Pads incl. Pad HolderredSuitable for: D28b
222047 001.jpg
Order-No.:222047-001
Color:red
Width of inner frame:
Pieces:6
Inked Pads incl. Pad HolderblueSuitable for: D28b
222047 002.jpg
Order-No.:222047-002
Color:blue
Width of inner frame:
Pieces:6
Inked Pads incl. Pad HoldergreenSuitable for: D28b
222047 003.jpg
Order-No.:222047-003
Color:green
Width of inner frame:
Pieces:6

MarkingPartner in your area

Your presumed location: 78120 Furtwangen
x
Gravierkunst Wölfle
Habsburgerstraße 121
79104 Freiburg

Phone: 0761 32404
Email: info@gravierkunst-woelfle.de
Weeber GmbH & Co. KG
Marktplatz 8
75175 Pforzheim

Phone: 07231 3116-0
Email: info@stempel-weeber.de
stempel-fabrik.de GmbH
Raiffeisenstr. 3
70839 Gerlingen

Phone: 07156 178273-0
Email: info@stempel-fabrik.de
» Website

Contact persons

SCHWANZARA Dominic
Phone: +49 7723 657-398
Email: Dominic.Schwanzara@reiner.de
STRÖHMER Ingo
Phone: +49 7723 657 384
Email: Ingo.Stroehmer@reiner.de
GROSSE Jochen
Phone: +49 7158 982449
Fax: +49 7158 956553
Mobile: +49 172 747 3932
Email: Jochen.Grosse@reiner.de
JUCKEL Friedhelm
Phone: +49 212 51233
Fax: +49 212 54714
Email: Friedhelm.Juckel@reiner.de

Similar products

Stamp, Dater with textplate  D53
Dater with Textplate, model D53
REINER D53 D53V Pos138.jpg
REINER D53 D53V Pos141.jpg
Product details

FAQ

How to change an ink cartridge?
REINER B6 Stempelkissen wechseln 1.jpg
REINER B6 Stempelkissen wechseln 2.jpg
To insert the inkpad → Fig. 1 + 3
Note: Use only oil-containing stamp ink.
Handle with caution to avoid dirt from ink!

> Press the handle A to the bottom of its travel, then while still holding it.
Press the button B on the front plate and continue to hold it pressed.
> Allow the handle A to move upwards until the handle locks in place.
Unpack the inkpad carefully.
Squeeze the grips F on the back of the inkpad and hold them.
Resting the back of the ink pad inside the pad cradle slide the pad into the slot F of the stamp.
In order to return to the print position, simply push down on handle E.
%reinervideoexplicit[mediafile{10234} ]%
Change an ink cartridge B2

» Switch to the YouTube channel
%reinervideoexplicit[mediafile{10237} ]%
Change an ink cartridge B6

» Switch to the YouTube channel
%reinervideoexplicit[mediafile{10240} ]%
Change an ink cartridge D28b

» Switch to the YouTube channel
%reinervideoexplicit[mediafile{10243} ]%
Change an ink cartridge D53

» Switch to the YouTube channel
How do I lock a stamp in its parking position?
REINER BA HS 5.jpg
To park the stamp → Fig. 5
To prolong the life of the inkpad, park the stamp!

> Press and hold button B on the front plate.
> Gently push handle A downwards until the stamp clicks & locks in a raised position.
> In order to return to the print position, simply push down on handle A.

Note
Some REINER® models feature a metal locking plate sitting inside the outer frame, or some older designs have a locking pin placed at the spring tube below the handle.
How do I unlock a stamp from its parking position?
REINER BA HS 5.jpg
Unlocking the stamp → Fig. 5

> In order to return to the print position, simply push down on handle A.

Note
Press back locking pin – e.g. model TA, K1.
How do I adjust the number or date?
REINER B6 Stempelkissen wechseln 1.jpg
REINER Stempelraeder einstellen 2.jpg
To set the stamp wheels → Fig. 1 + 2
Example B6

> Press the handle A to the bottom of its travel, then while still holding it.
> Press and hold button B on the front plate.
> Allow the handle A to move upwards until the handle locks in place.
> You will be able to move the stamp wheels D freely with the stylus C.

You can hide preceding zeros in a number!
Example: 49 instead of 000049

> To do this move the stamp wheels D with the adjusting pin C to the empty spaces between “0” and “1”.
> In order to return to the print position, simply push down on handle A.

Note
REINER® date stamps feature a lever mechanism to move the date forward day by day. This lever may also be used to adjust the setting of the wheels. Just press down the lever.

How do I remove preceeding zeros from a printed number?


REINER Stempelraeder einstellen C.jpg
Preceding zeros → Fig. 2
Example: 49 instead of 000049

> Turn the stamp wheel D with stylus C to digit position “0”.
> Using stylus rotate and push down on stamp wheel through a half digit position until it sinks below print height.
> To return to the print position, simply push down on handle A.

REINER Stempelraeder einstellen 2.jpg
Exceptions: Mod. B6, B6K, ND6K
Have no drop wheels. You may remove the zero from printing by turning the wheel “half way” to “1”.

> To do this move the stamp wheels D with the adjusting pin C to the empty spaces between “0” and “1”.

Note
Date stamps do not feature wheels that can retract.
How do I set a date?
REINER® date stamps in general feature a lever to set the date. Just press the lever to turn the wheels.

Alternatively use a stylo and refer to “How do I adjust the number or date” an “How do I lock a stamp in its parking position”.
