The modular SB-Scanner RS 980 reliably scans small and up to letter sized vouchers in the self-service area. Particularly the simple and safe operation ensures fast processes.
The scanning system supports document administration in industry, bank, trade and logistics terminals.

The multiformat scanner RS 980 pulls the documents in completely before scanning them, permitting safe processing that cannot be influenced. Automatic size recognition and inclination correction reviews the documents and ensures accurately aligned, correct reproduction of all image sizes, even on both sides.

The slim, modular scanning system ensures individual solutions for the desired application. It consists of the mouth piece, scanner and switch.

The SB-Scanner RS 980 automatically recognises that paper is fed in and begins processing. Coloured running lights support intuitive proper insertion of the documents. Documents outside of the size specifications are rejected, as well as double page documents. One colour camera each to record the front and reverse supplement the high-quality properties of this scanner. The entire document section is accessible without tools for easy maintenance.

Features

  • Modular build made up of a mouthpiece, scanner and shift
  • Universal scanner for large and small documents
  • Document detection at the shutter
  • Front and rear-side cameras
  • Very robust document insertion
  • Terminal adapter with optical user guidance
  • Protected against outside interference
  • High reliability for continuous use 24/7
  • 3 different exits for documents
  • On request offers variable kiosk integration possibilities e.g. using an intermediate transport
  • Mechanical and electronic document alignment
  • Document track monitoring
  • Position sensors
  • Double-feed control
  • USB 2.0 interface
  • Document track opens completely

Technical Data

Document Specifications:
  • Width: 100 mm to 220 mm
  • Height: 60 mm to 356 mm
  • Paper weight: 60 to 120 g/m²
  • Thickness: 0,07 mm to 0,15 mm

    Optional: Further paper specifications on request!
Performance:
  • Transport and clearing speed up to 500 mm/s possible
  • Scanning speed is adjusted to resolution:
  • At 300 dpi (bidirectional resolution) & 256 greys approx. 212 mm/s. e.g. document A4 300 dpi 256 greys approx. 3 s. (scanner forward & backward)
  • Double page inspection by ultrasound sensor in the mouth piece in front of the shutter
Image Capture System:
  • 2 colour cameras (RGB), optional 1x front camera with RGB, UV, IR illumination
  • Scan window width: up to 216 mm
  • Physical resolution: up to 600 dpi possible, can be reduced by SW and HW
  • Lighting for red, green, blue (RGB), optional: Ultraviolet (UV), infrared (IR) for the front
  • Picture output: 1 bit s/w up to 24 bit colour
Interface:
  • USB 2.0
Software:
  • API for Win7, Win8, Win10

    All devices are equipped with basic software (API) that can be used for further processing in all common image processing programs.
    Order No. 988311-000

    Software package 1:
    Supports the user with basic image processing and editing functions, such as compression, conversion, field processing, position evaluation.
    Order No. 988311-001

    Software package 2:
    Includes expanded functions in the area of image processing. Various standardised fonts can be read by OCR text recognition.
    Order No. 988311-002

    Software package 3:
    This module expands the image processing function with additional editing options and enables the user to integrate or display text and labels.
    Order No. 988311-003
Environmental Conditions:
  • Operating range:
    • Temperature: +10 °C to +40 °C
    • Humidity: 30% to 70%
  • Storage/Transport range:
    • Temperature: -40 °C to +70 °C
    • Humidity: 10% to 90%
Dimensions without in-feed tray and adapter plate (W x D x H):
  • 165 mm x 375 mm x 140 mm
Weight:
  • Weight of the scan module with shutter and switch: 6,9 kg
Colour:
  • Front plate black
Power:
  • 24 V DC; < 3 A (optional mains unit: 100… 240 VAC)

Product videos

Video: Self-service scanner RS980
See the convincing properties of the self-service multiformat scanner RS980 in the clip:
- Modular system of three parts: mouth piece, switch and scan module
- Resolution up to 600 dpi
- Optimised user guidance by LED arrows
- Display of the UV and IR features in the image
- Multiformat scanner for all common paper formats
- Very robust document transport, e.g. vehicle registration documents of special composite materials can be scanned easily
- Smart system: Documents can be retained or returned to the user as required


_____________________________________________________

Application clip: Self-service scanner RS980 in the supplier terminal
Quick and simple digitalisation of documents in logistics

The RS980 self-service multiformat scanner permits integration into self-service terminals and serves as a "digitalisation point".
The modular RS 980 reliably scans small vouchers and documents up to A4 in size in the self-service area.
The simple and safe operation ensures particularly quick processes. The scan system supports document administration in industry, bank, trading and logistics terminals.

The application clip shows an optimised inbound goods process.
Integration of the REINER self-service scanner RS980 into a self-service terminal, shown here using the example of the DocScanBox by Pyramid, enables the forwarder to scan the vouchers directly, easily and safely at the self-service terminal.
The data are automatically submitted and archived by scanning.

Less time needed, improved safety. The REINER solution for logistics.

The multiformat scanner RS 980 processes all the common paper formats from A7 to A4.
The scanner produces high-quality front and rear colour images with a visual resolution of up to 600 dpi in one pass and even permits recordings with UV and IR light, so that the safety features of the documents can be reviewed visually or automatically.

Learn more about the perfect solution for your logistics in the brief clip!

Download

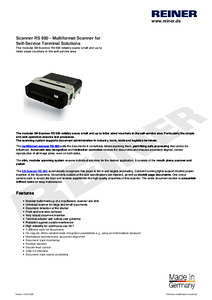

Product datasheet
PREMIUM Software (b2b)
