SENSOR 1D/2D CODE READER

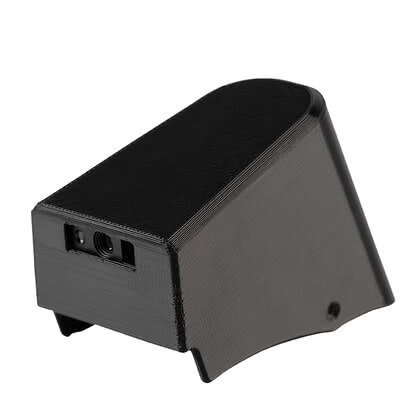

Optical reading and decoding unit for the REINER jetStamp® 1025 sense

Simply connect, scan barcodes, and print data

Scanner 09.jpg

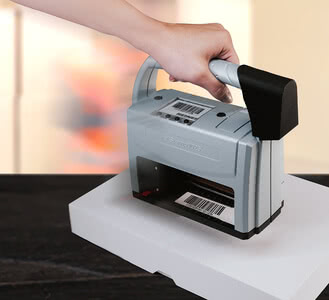

The mobile jetStamp® 1025 sense inkjet printer turns into an all-round device for handling barcodes with the attachable 1D/2D scanner. The data acquisition unit reads a great variety of barcodes, passing the data contained in them on to the jetStamp® 1025 sense printer. The barcode can be printed right after scanning, without requiring any connection to a PC or any other intermediate device.

The imprints are preset once using the enclosed PCset graphic imprint design software. Many different variable objects can be freely combined with the placeholder field barcode in the course of this. The prepared imprints are transferred to the jetStamp® 1025 sense, where employees can easily choose between different templates on the display!

The merger of barcode reader/scanner and printer saves immense time and costs for its users. On top of this, the jetStamp® 1025 sense marking device is not installed in a fixed location, but can be used where it is needed without trailing cables. This improves the employees’ working conditions while noticeably increasing efficiency.

All-in-one for handling barcodes – the REINER® barcode reader for the jetStamp® 1025 sense. Available now.

BENEFITS AT A GLANCE:

  • SINGLE-device solution – SCAN-process-print (also offline)
  • Compact scanning unit – reads more than 20 internationally commonly used 1D-2D bar matrix codes
  • Fully mobile – both for the user at the workplace and for device deployment planning in the company
  • One-handed operation – always ready for use with a single hand – even the imprint can be changed with a single click on the display
  • Greater process reliability – read out, transfer, and print data as previously defined – always legible!

Technical Data

Readable 1D-2D codes via BARCODE sensor: Codabar / Code 11 / Code 128, 128-B / Code 39, 39 Full ASCII / Code 93, 93 Full ASCII / Data Matrix / EAN 128, 13, 8 / GS1 Databar / Industrial 2 of 5 / Interleaved 2 of 5 / Matrix 2 of 5 / Micro QR / MSI Code / PDF 417 / QR code / UPC, UPC-A, -E
Available 1D-2D codes placeholder printing:AZTEC / Code 39 / Code 128-B / Interleaved 2 of 5 / QR code / Data Matrix / PDF 417
Readable 1D-2D Codes Placeholder Plain Text:Codabar / Code 11 / Code 128, 128-B / Code 39, 39 Full ASCII / Code 93, 93 Full ASCII / Data Matrix / EAN 128, 13, 8 / GS1 Databar / Industrial 2 of 5 / Interleaved 2 of 5 / Matrix 2 of 5 / Micro QR / MSI Code / PDF 417 / QR code / UPC, UPC-A, -E
Order-No.:1037 520-000
