Stacker Unit RA 897-000 - for up to 300 or 600 documents
REINER RA897-RC600 - product illustration: RA897-RC600, ahead
REINER RS891+RA897-000 - product illustration: RS891+RA897-000
REINER RS891-RA897-000-RC600 - product illustration: RS891-RA897-000-RC600, behind
made in germany.jpg
  • Controlled by RS 891 scan module
  • Motorised transport
  • Optical transport control
  • Stop function on cassette full
  • Simple to empty cassette
  • Fully accessible paper path
  • Cassette capacity of 300 or 600 documents
The Stacker Unit RA 897-000 can be combined with the REINER® RS 891 open-frame scan module for a secure and sequential document deposit after the scanning process.

This model fits below the RS 891 scanner. The (optionally lockable) cassette can be removed independently from the stacker drive unit and the stored documents can be easily removed.

Document movements are constantly monitored during transport and the paper path is fully accessible, enabling quick and simple intervention if necessary.

Technical Data

Document Specifications:
  • Width: 70 mm to 112 mm
  • Length: 127 mm to 220 mm
  • Weight: 70 to 120 g/m²
  • Thickness: 0.07 mm to 0.15 mm

    Optional: additional paper specifications on demand!
Capacity:
  • Exchangeable, lockable cassette for 300 or 600 documents
Performance:
  • Between 3 - 5 s/doc (depending on the application process)
Transport Control Monitoring:
  • Using photo sensors
Environmental Conditions:
  • In operation:
    • Temperature: +10 °C to +40 °C
    • Humidity: 30 % to 70 %
  • In store or during transportation (condensation free, foil-sealed, with desiccant/max 20 h):
    • Temperature: -40 °C to +70 °C
    • Humidity: 10 % to 90 %
Dimensions Cassette only (W x D x H):
  • 300 docs cassette: 260 mm x 155 mm x 120 mm
  • 600 docs cassette: 260 mm x 155 mm x 158 mm
Weight Cassette only:
  • Empty cassette for 300 documents: 3.0 kg
  • Empty cassette for 600 documents: 3.4 kg
Dimensions RS 891 & RA 897-000 (W x D x H):
  • With 300 docs cassette: 165 mm x 390 mm x 320 mm
  • With 600 docs cassette: 165 mm x 390 mm x 350 mm
Weight RS 891 & RA 897-000:
  • With empty cassette for 300 documents: approx. 11.3 kg
  • With empty cassette for 600 documents: approx. 11.7 kg
Colour:
  • Black
Power and Control:
  • Provided by the scan module RS 891
Approvals:
  • Conforms to:
    • EMC-Guideline 2014/30/EU
      Low-voltage guideline 2014/35/EU
    • Type-approved according to:
      EN60950-1:2006+A11:2009+A1:2010 +A12:2011 (bis 19.06.2019)
    • cCSAUSA according to:
      CSA 60950-1-07, 2nd Edition UL 60950-1, 2nd Edition
    • FCC Part 15
You are here:

Advantages at a glance

kzg made in germany flag.svg
Made in Germany

One of the few manufacturers that produces all product lines "Made in Germany" is REINER®.
alles aus einer hand.svg
Everything from one source

From design to toolmaking of fine blanking dies and forming tools to all relevant manufacturing processes.
zertifiziert1.svg
Certified

The REINER® quality system has been certified according to DIN EN ISO 9001 since 2001.


erfahrung1.svg
Over 100 years of experience

At the company's headquarters in Furtwangen, innovative products have been created with Black Forest precision for over 100 years that are in demand worldwide.

Download

downloads-intro-rwd

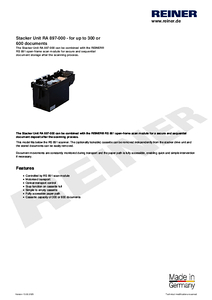

Product datasheet RA 897 000 en00
