Stacker Unit RA 894-015 - for up to 1.000 or 2.000 documents

Introduction Technical Data Service Video Download

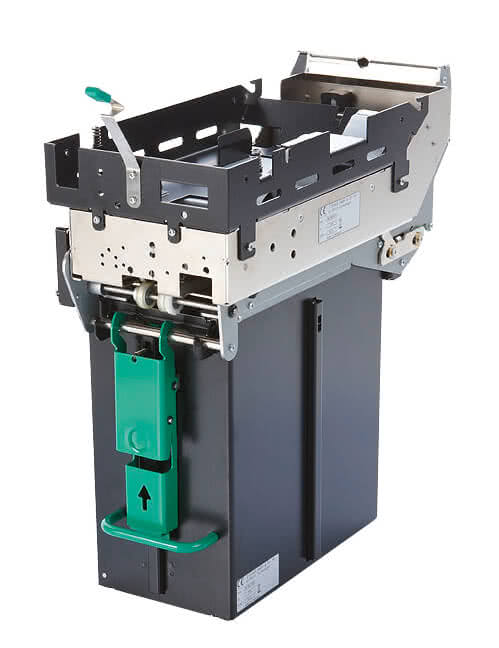

REINER RA894 RC1000 vorne 72dpi frei.jpg

REINER RA 894-015 - product illustration: RA 894-015

Controlled by RS 891 or RS 893 scan modules
Motorised transport
Optical transport control
Warning function on cassette full
Simple to empty cassette
Fully accessible paper path
Cassette capacity of 1.000 or 2.000 documents

For the scanner models RS 891 and RS 893. For orderly storage for up to 1.000 or 2.000 documents.

The Stacker unit RA 894-015 can be combined with REINER® open-frame scan modules for a secure and efficient document storage after the scanning process.

The Stacker unit RA 894-015 is an option both for the scanner module RS 891 and the bundle scanner RS 893.

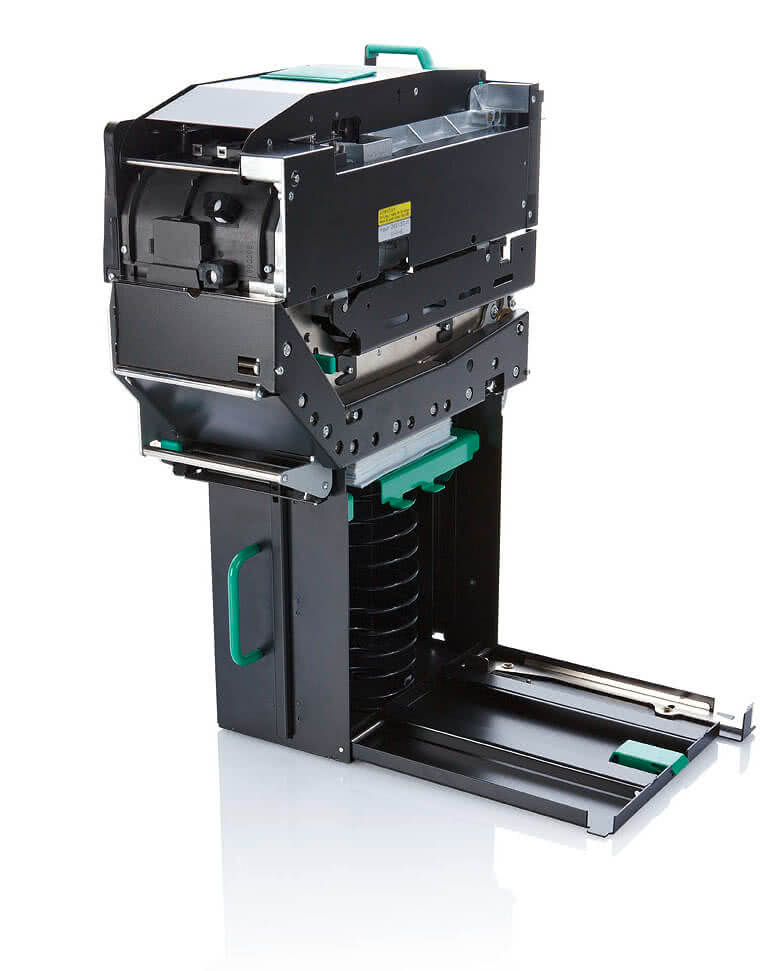

Controlled by the scanner, the RA 894-015 assures a reliable, efficient and orderly storage for up to 1.000 or 2.000 documents. The cassette can be removed independently from the stacker drive unit and the documents can be easily removed from the box.

Documents are constantly monitored while being transported and the paper path is fully accessible, enabling quick and simple intervention if necessary.

Technical Data

Document Specifications:	Width: 70 mm to 112 mm Length: 127 mm to 220 mm Weight: 70 to 120 g/m² Thickness: 0.07 mm to 0.15 mm Optional: additional paper specifications on demand!
Performance:	Between 3 - 5 s/doc (depending on the application process)
Transport Control Monitoring:	Using photo sensors
Environmental Conditions:	In operation: Temperature: +10 °C to +40 °C Humidity: 30 % to 70 % In store or during transportation (condensation free, foil-sealed, with desiccant/max 20 h): Temperature: -40 °C to +70 °C Humidity: 10 % to 90 %
Dimensions Cassette only (W x D x H):	1.000 docs cassette: 150 mm x 300 mm x 270 mm 2.000 docs cassette: 150 mm x 300 mm x 430 mm
Weight Cassette only:	Empty cassette for 1.000 documents: 4.6 kg Empty cassette for 2.000 documents: 6.3 kg

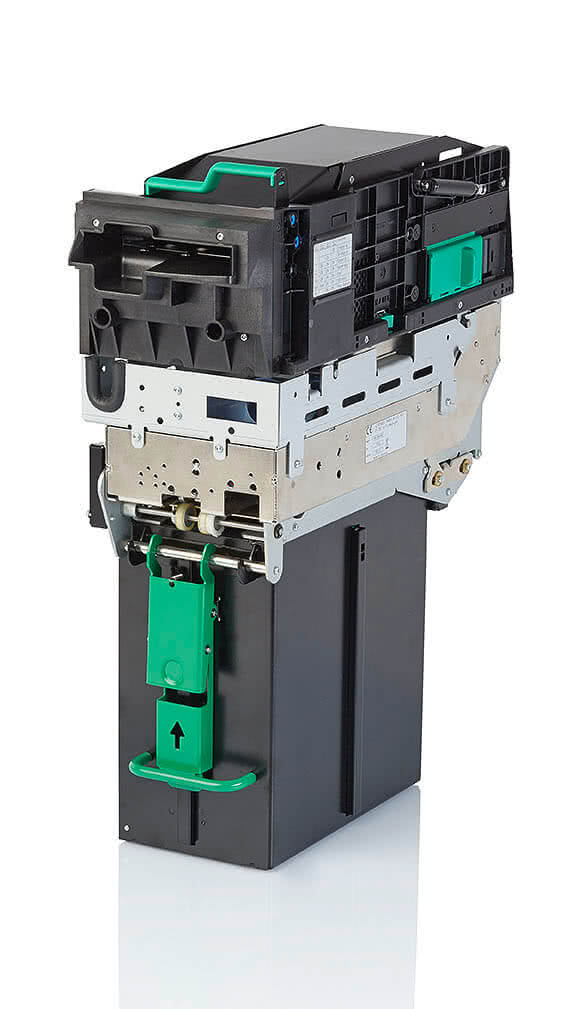

Dimensions RS 891 & RA 894-015 (W x D x H):	With 1.000 docs cassette: 165 mm x 375 mm x 525 mm With 2.000 docs cassette: 165 mm x 375 mm x 685 mm For mechanical integration in combination with RS 893 + RR 895 required width: 175 mm (with either cassette)
Weight RS 891 & RA 894-015:	With empty cassette for 1.000 documents: approx. 16.5 kg With empty cassette for 2.000 documents: approx. 18.2 kg
Colour:	Black
Power and Control:	Provided by the scanner RS 891 or the bundle scanner RS 893
Approvals:	Conforms to: EMC-Guideline 2014/30/EU Low-voltage guideline 2014/35/EU Type-approved according to: EN60950-1:2006+A11:2009+A1:2010 +A12:2011 (bis 19.06.2019) cCSAUSA according to: CSA 60950-1-07, 2nd Edition UL 60950-1, 2nd Edition FCC Part 15
