Stacker Unit RA 1010 – modular multi cassette system

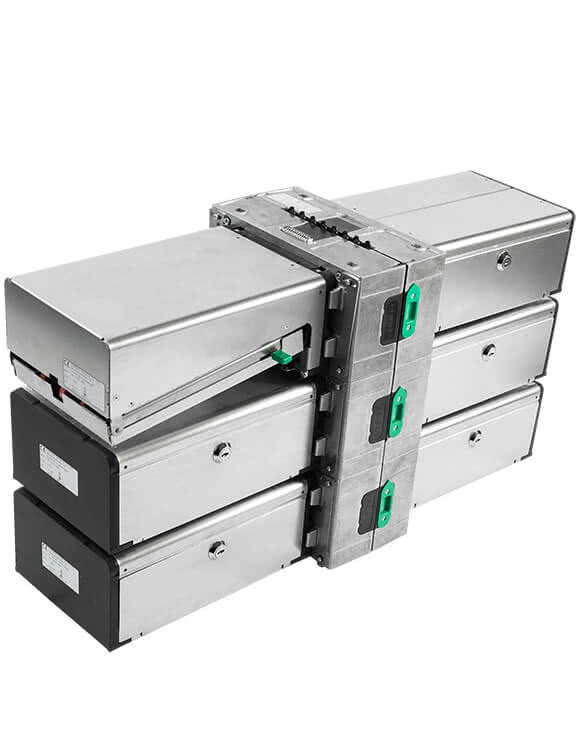

Scanner REINER

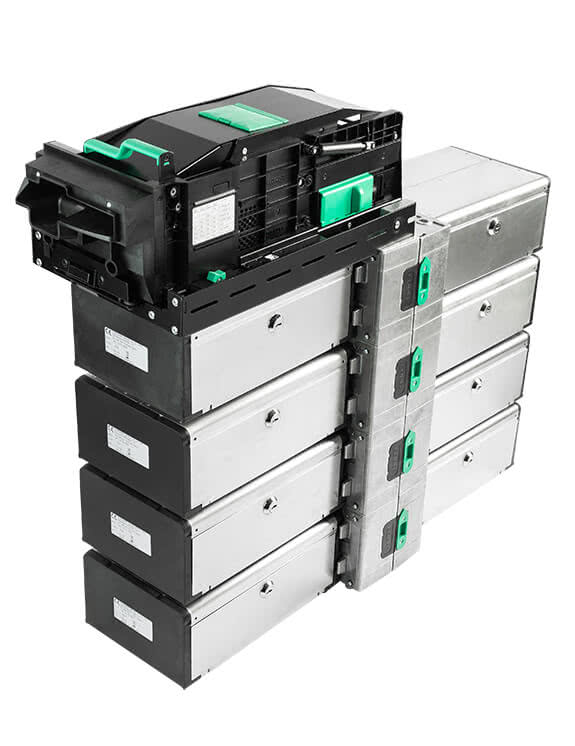

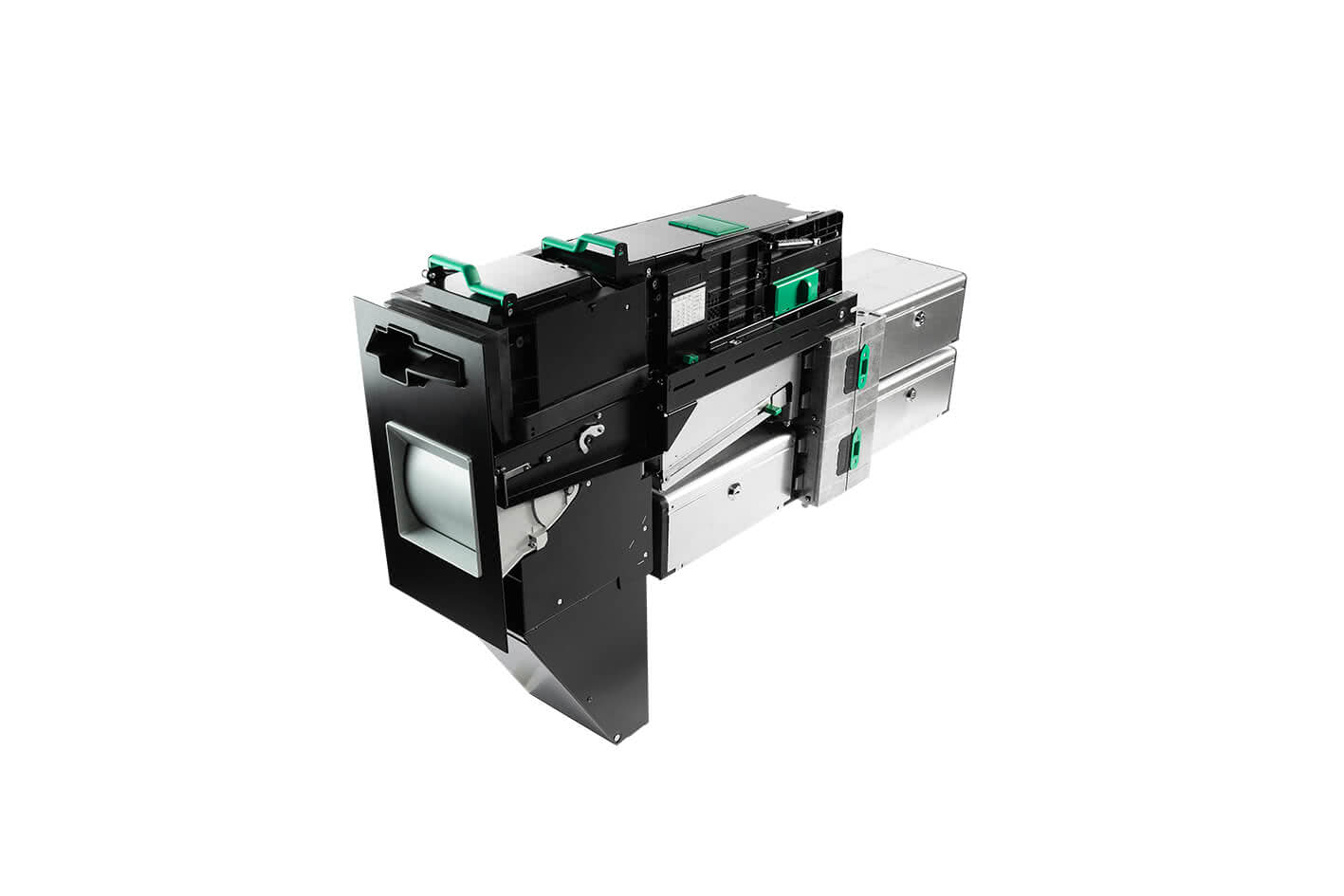

MKS 1010 mit RS891.jpg
made in germany.jpg
  • Compatible with REINER® scanners RS 891 & RS 893 – scanners with single or multiple supply.
  • Vouchers of many different formats can be taken up.
  • The system recognises the position and number of the modules.
  • Control takes place via the scanner.
  • Compact, open build, freely accessible paper chute
  • Lockable cassettes

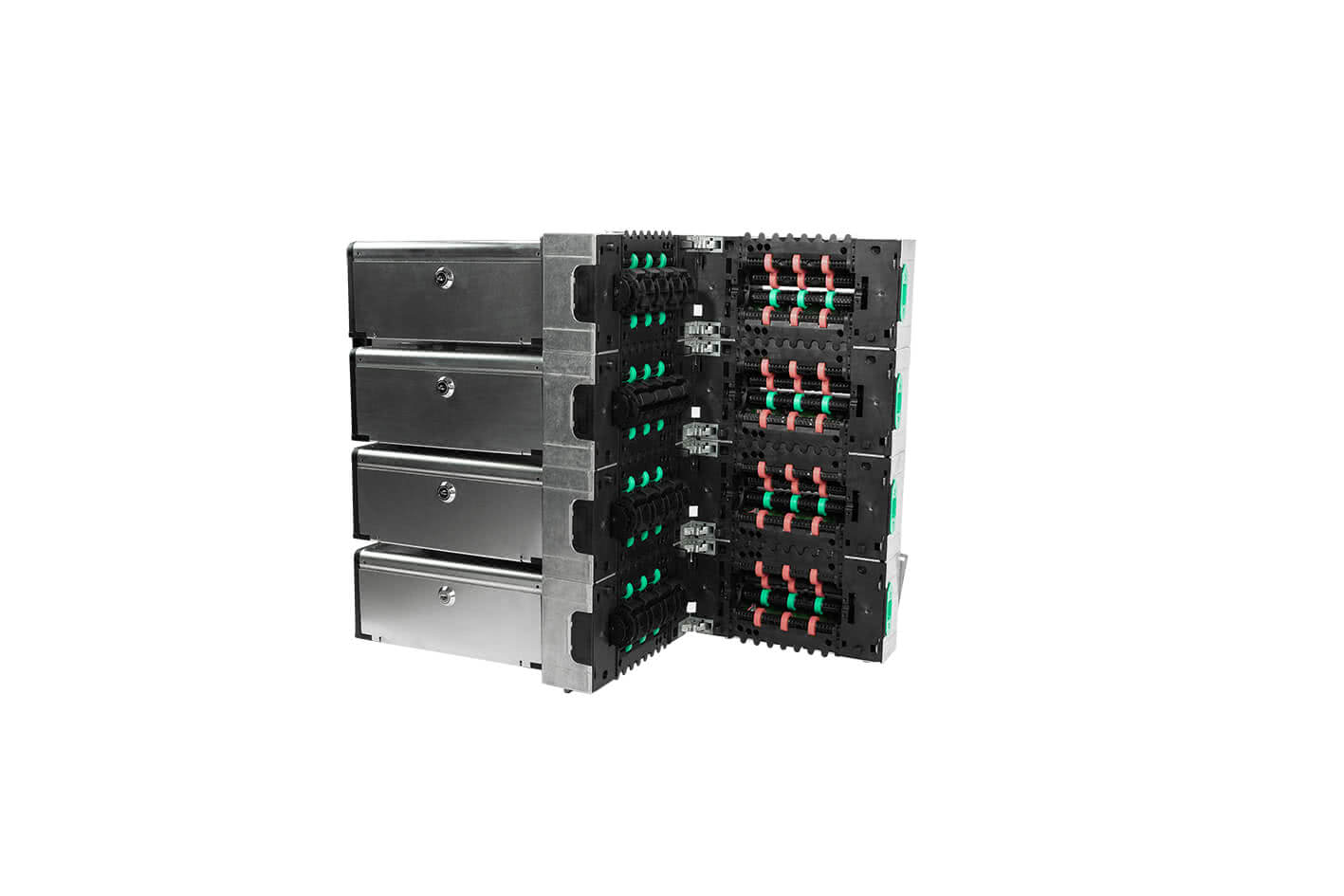

  • Simple cassette handling – documents can be taken out on both sides.
  • Two additional voucher outputs for additional requirements
  • Cassette capacity: 300 documents each
  • Filling capacity: 1 to max. 9 cassettes;
  • 300 to max. 2,700 documents

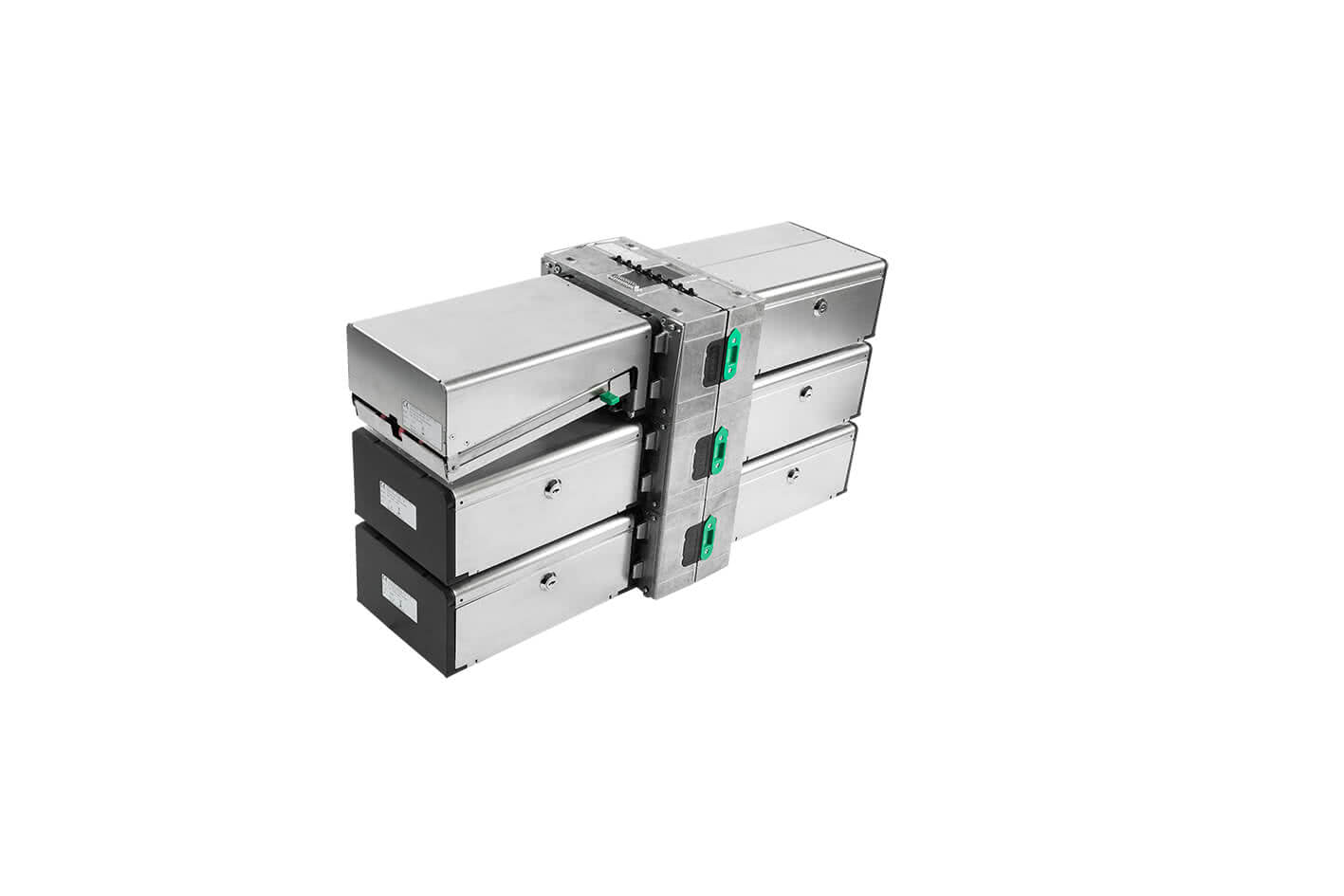

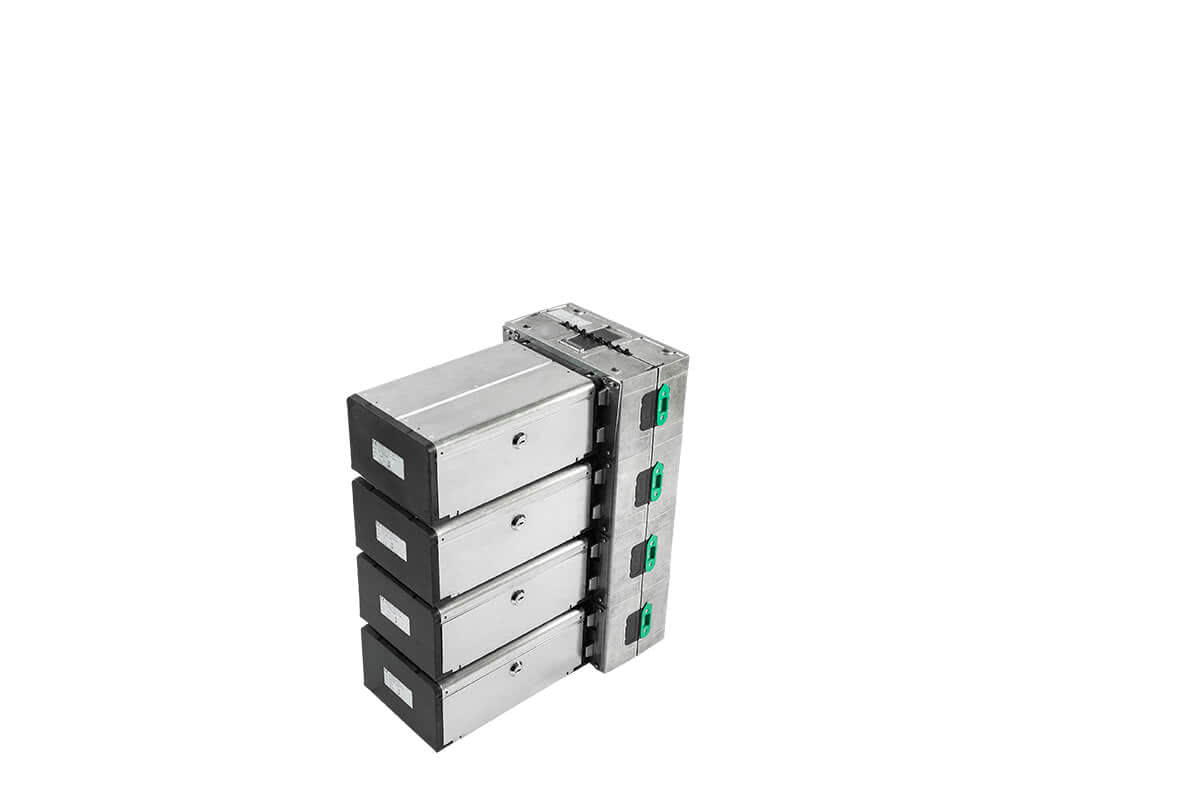

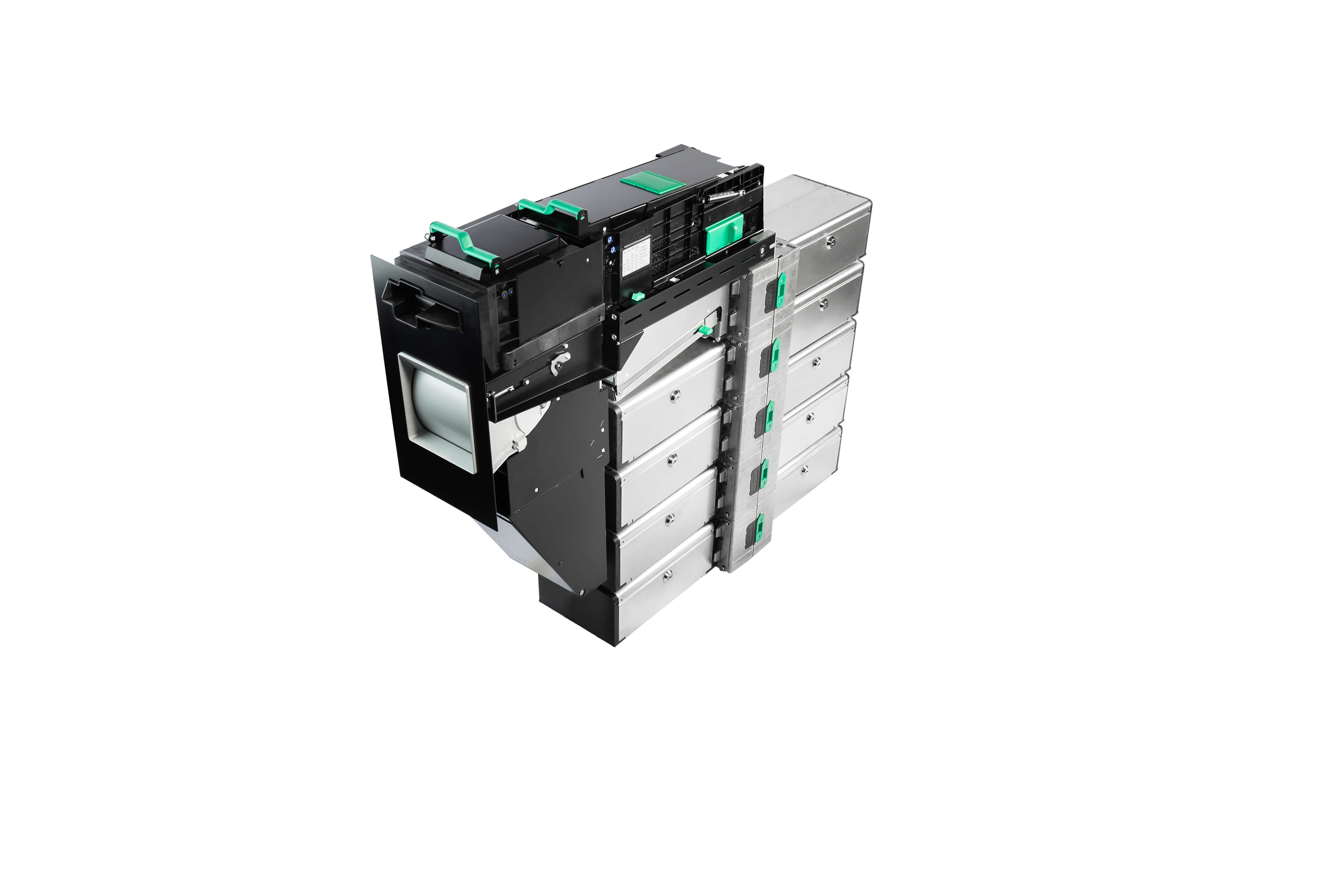

The multiple cassette system RA 1010 is a modular filing unit that permits safe, efficient and process-oriented storage of documents after scanning.
Connection to all REINER® scan modules of types RS 891 and RS 893 is possible. In up to nine separate units, documents of many different formats can be collected and secured.


The modular multiple cassette system offers the most flexible solutions in case of document variance or complex document processes.

The assembly offers you customer-oriented integration. Choose the number of cassette units to match the scanner you have in alignment with the customer process.

Up to nine cassettes can be used in existing and new terminal integrations.
Subsequent expansion of the assembly with additional cassettes is possible at any time. The exchange cassettes have sufficient volume and are lockable. Documents can be taken out to the left or right.

The matching solution is ideally and individually compiled from a multiple of the cassette capacity of 300 documents each.

Technical Data

Document Specifications:
  • Width: 60 mm to 112 mm
  • Height: 127 mm to 220 mm
  • Paper weight: 70 g/m² to 120 g/m²
  • Thickness: 0,07 mm to 0,15 mm
  • Optional: Paper-specifications on request
Performance:
  • Circa 4 sec./document (depending on the application process)
Power and Control:
  • Provided by scan module RS 893 or RS 891
Environmental Conditions:
  • Operating range:
    • Temperature: +10 °C to +40 °C
    • Humidity: 30 % bis 70 %
Dimensions (L x W x H):
  • RA 1010 for RS 891 - as TWIN
  • One cassette / 300 documents: 225 mm x 715 mm x 290 mm
  • Max. eight cassettes / 2,400 documents: 225 mm x 715 mm x 626 mm

  • RA 1010 for RS 891 - as SINGLE
  • One cassette / 300 documents: 225 mm x 465 mm x 290 mm
  • Max. four cassettes / 1,200 documents: 225 mm x 465 mm x 626 mm

  • RA 1010 for RS 893 - as TWIN
  • One cassette / 300 documents: 225 mm x 900 mm x 595 mm
  • Max. nine cassettes / 2,700 documents: 225 mm x 900 mm x 752 mm

  • RA 1010 for RS 893 - as SINGLE
  • One cassette / 300 documents: 225 mm x 650 mm x 595 mm
  • Max. four cassettes / 1,200 documents: 225 mm x 650 mm x 752 mm
Colour:
  • Silver
Power and Control:
  • Provided by the scanner RS 891 or the bundle scanner RS 893
You are here:

Advantages at a glance

kzg made in germany flag.svg
Made in Germany

One of the few manufacturers that produces all product lines "Made in Germany" is REINER®.
alles aus einer hand.svg
Everything from one source

From design to toolmaking of fine blanking dies and forming tools to all relevant manufacturing processes.
zertifiziert1.svg
Certified

The REINER® quality system has been certified according to DIN EN ISO 9001 since 2001.


erfahrung1.svg
Over 100 years of experience

At the company's headquarters in Furtwangen, innovative products have been created with Black Forest precision for over 100 years that are in demand worldwide.

Download

downloads-intro-rwd

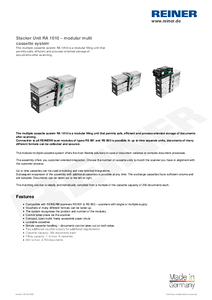

Product datasheet RA 1010 en00
