Accessory Reject Module RR 895-030

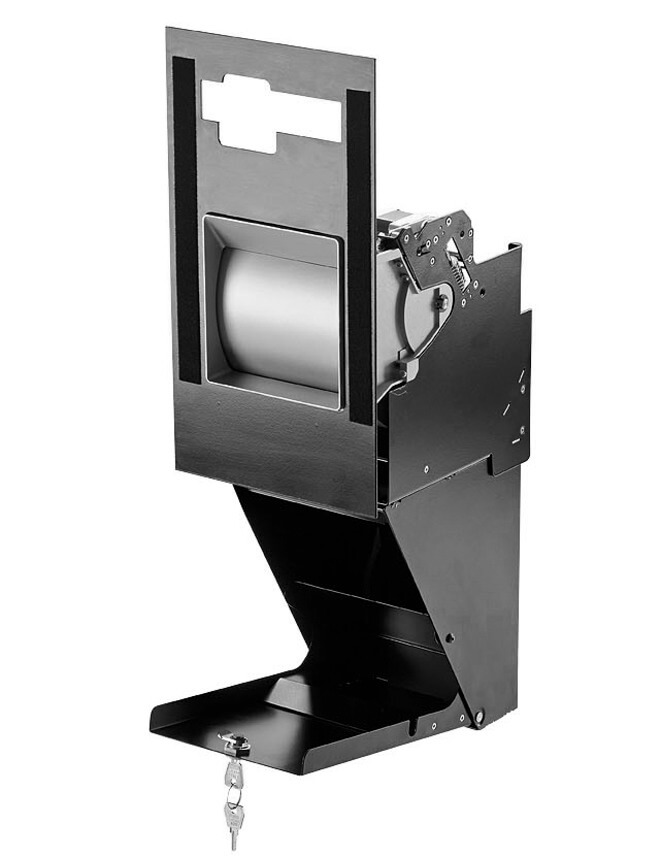

REINER RR-895-030 - product illustration: RR-895-030

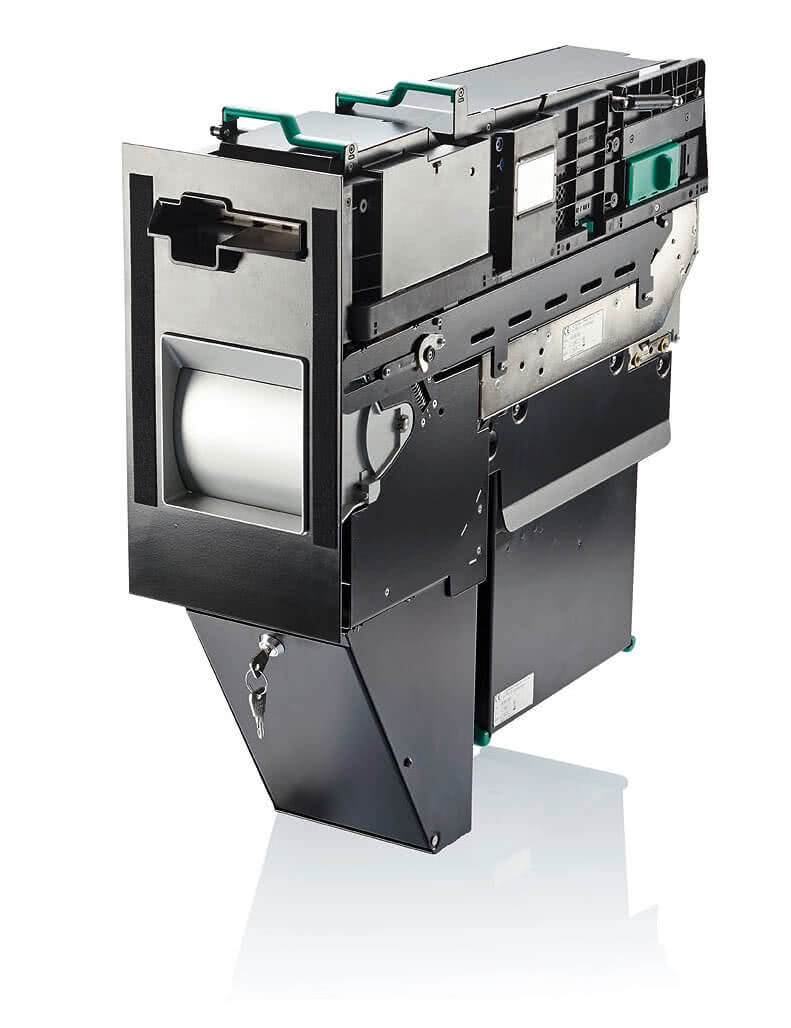

REINER RS-893-4-5-030 - product illustration: RR 895-030
made in germany.jpg
  • Retract Bin is lockable but not removable and can store up to 100 documents
  • Reject tray stores up to 20 documents
  • Shutter is solid aluminum die-casting
Returns or retracts rejected documents. Brings new security features to the bundle feeding scan process.

The reject module RR 895-030 is an option which can be combined with the bundle scanner RS 893 and the stacker unit RA 894-030. It adds flexibility to the bundle feeding scan process by returning or retracting the rejected documents. The RR 895-030 consists of the Reject Tray and the Retract Bin. The scanner RS 893 can send any documents it rejects to the Reject Tray instead of the RA 894-030 stacker. In case customers forget to remove rejected documents, these can be securely deposited in the lockable Retract Bin. Documents can be put directly into the Retract Bin without being exposed in the Reject Tray, if required.

The shutter of the RR 895-030 is opened and closed under control of the RS 893 application program. When the RR 895-030 shutter closes, any documents remaining in the Reject Tray and not retrieved by the user are stored in the Retract Bin.

The mechanical integration of the RR 895-030 is fully compatible with the earlier RR 895-000 model.

Technical Data

Document Specifications:
  • Height: 70 mm to 112 mm
  • Length: 127 mm to 220 mm
  • Weight: 70 to 120 g/m²
  • Thickness: 0.07 mm to 0.15 mm

    Optional: additional paper specifications on demand!
Power and Control:
  • Through the bundle feed scanner RS 893
Transport Control Monitoring:
  • Using optical sensors
Environmental Conditions:
  • In operation:
    • Temperature: +10 °C to +40 °C
    • Humidity: 30 % to 70 %
  • In store or during transportation (non-condensing, foil-sealed, with desiccant/max 20 h):
    • Temperature: -40 °C to +70 °C
    • Humidity: 10 % to 90 %
Weight:
  • 6.8 kg
Combined RS 893, RA 894-030 and RR 895-030 Dimensions (W x D x H):
  • With 1.000 docs cassette: 170 mm x 590 mm x 600 mm
  • With 2.000 docs cassette: 170 mm x 590 mm x 690 mm
  • For mechanical integration in combination with RS 893 + RR 895 required width: 175 mm (with either cassette)
Weight:
  • With empty cassette for 1.000 documents: approx. 25.8 kg
  • With empty cassette for 2.000 documents: approx. 26.9 kg
Colors:
  • Aluminium (externally visible part)
  • Black/Silver (body)
Approvals:
  • Conforms to:
    • EMC-Guideline 2014/30/EU
      Low-voltage guideline 2014/35/EU
    • Type-approved according to:
      EN60950-1:2006+A11:2009+A1:2010 +A12:2011 (bis 19.06.2019)
    • cCSAUSA according to:
      CSA 60950-1-07, 2nd Edition UL 60950-1, 2nd Edition
    • FCC Part 15
You are here:

Advantages at a glance

kzg made in germany flag.svg
Made in Germany

One of the few manufacturers that produces all product lines "Made in Germany" is REINER®.
alles aus einer hand.svg
Everything from one source

From design to toolmaking of fine blanking dies and forming tools to all relevant manufacturing processes.
zertifiziert1.svg
Certified

The REINER® quality system has been certified according to DIN EN ISO 9001 since 2001.


erfahrung1.svg
Over 100 years of experience

At the company's headquarters in Furtwangen, innovative products have been created with Black Forest precision for over 100 years that are in demand worldwide.

Download

downloads-intro-rwd

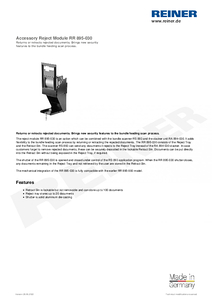

Product datasheet RR 895 030 en00
