Accessory Reject Module RR 895-000

Introduction Technical Data Service Video Download

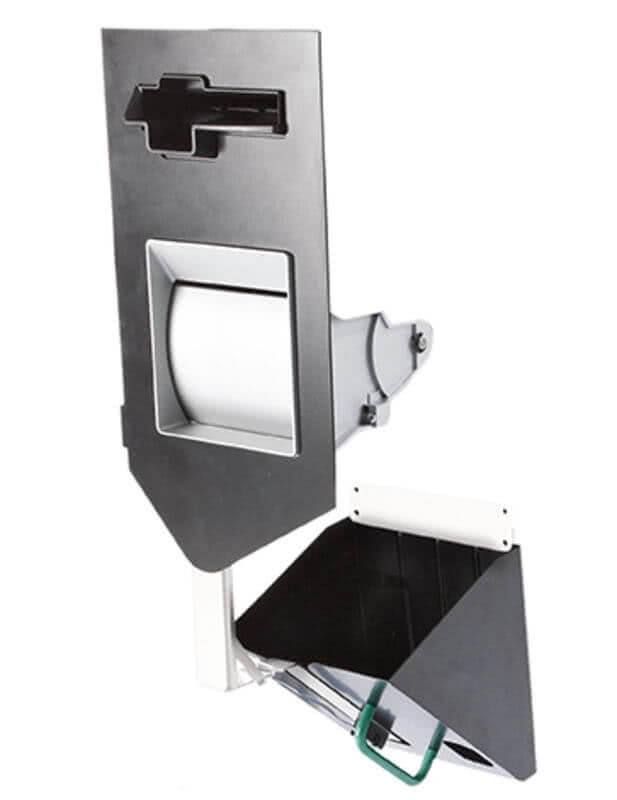

REINER RR 895-000 - product illustration: RR 895-000 without receipt

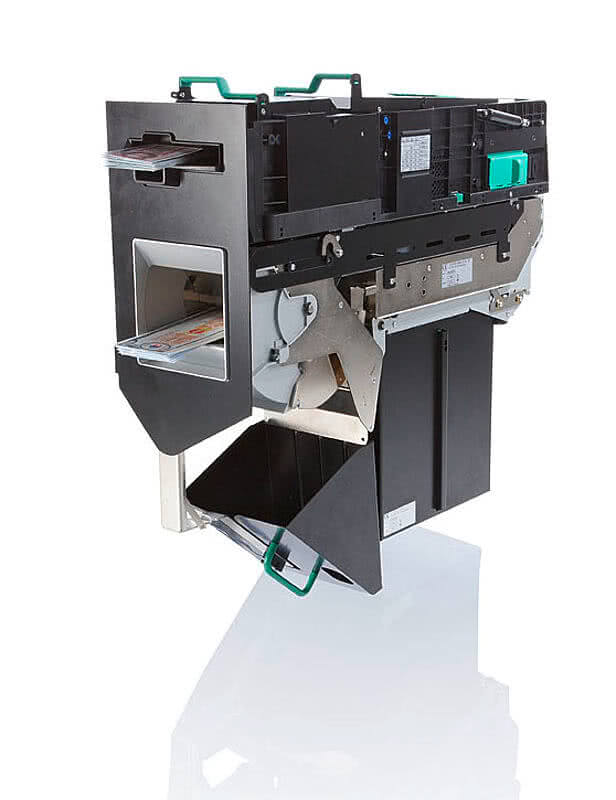

REINER RS893-RA894-RC1000-RR895 - product illustration: RR895-000, supporting documents

Can be opened by hand in case of power loss
Electro-mechanical drive for shutter
Includes retract bin for forgotten documents
Shutter is solid aluminium die-casting

Add flexibility to your bundle feeding scan process by returning or retracting the rejected documents.

The reject module RR 895-000 is an option which can be combined with the bundle scanner RS 893 and the stacker unit RA 894-015.

The REINER® RS 893 scanner can send any documents it rejects to the RR 895-000 instead of the RA 894-015 stacker.

The shutter of the RR 895-000 is opened and closed under control of the RS 893 application program. When the RR 895-000 shutter closes, any documents not retrieved by the user are stored in a separate retract bin (supplied with RR 895-000).

Technical Data

Document Specifications:	Width: 70 mm to 112 mm Length: 127 mm to 220 mm Weight: 70 to 120 g/m² Thickness: 0.07 mm to 0.15 mm Optional: additional paper specifications on demand!
Power and Control:	Through the bundle feed scanner RS 893
Transport Control Monitoring:	Using optical sensors
Environmental Conditions:	In operation: Temperature: +10 °C to +40 °C Humidity: 30 % to 70 % In store or during transportation (non-condensing, foil-sealed with desiccant/max 20 h): Temperature: -40 °C to +70 °C Humidity: 10 % to 90 %
RR 895-000 alone, excluding retract bin Dimensions (W x D x H):	161 mm x 258 mm x 466 mm
Weight:	4.5 kg
Combined RS 893, RA 894-015 and RR 895-000 Dimensions (W x D x H):	With 1.000 docs cassette: 165 mm x 590 mm x 590 mm With 2.000 docs cassette: 165 mm x 590 mm x 690 mm For mechanical integration in combination with RS 893 + RR 895 required width: 175 mm (with either cassette)
Weight:	With empty cassette for 1.000 documents: approx. 24.4 kg With empty cassette for 2.000 documents: approx. 26 kg
Colors:	Aluminium (externally visible part) Black/Silver (body)
Approvals:	Conforms to: EMC-Guideline 2014/30/EU Low-voltage guideline 2014/30/EU Type-approved according to: EN60950-1:2006+A11:2009+A1:2010 +A12:2011 (bis 19.06.2019) cCSAUSA according to: CSA 60950-1-07, 2nd Edition UL 60950-1, 2nd Edition FCC Part 15
