Stacker Unit RA 897-200 - up to 300 or 600 documents

REINER RA897 200 RC600 72dpi frei.jpg
REINER RS891+RA897-200 - product illustration: RS891+RA897-200
X
REINER RA897 200 RC600 72dpi frei
REINER RS891+RA897-200 - product illustration: RS891+RA897-200

The Stacker Unit RA 897-200 can be combined with the REINER RS 891 open frame scan module for a secure and sequential document deposit after the scanning process.

This model fits at the rear of the RS 891 scanner. The (optionally lockable) cassette can be removed independently from the stacker drive unit and the stored documents can be easily removed.

Document movements are constantly monitored during transport and the paper path is fully accessible, enabling quick and simple intervention if necessary.

Features

  • Controlled by RS 891 scan module
  • Motorised transport
  • Optical transport control
  • Stop function on cassette full
  • Simple to empty cassette
  • Fully accessible paper path
  • Cassette capacity of 300 or 600 documents

Technical Data

Document Specifications:
  • Width: 70 mm to 112 mm
  • Length: 127 mm to 220 mm
  • Weight: 70 to 120 g/m²
  • Thickness: 0.07 mm to 0.15 mm

    Optional: additional paper specifications on demand!
Capacity:
  • Exchangeable, lockable cassette for 300 or 600 documents
Performance:
  • Between 3 - 5 s/doc (depending on the application process)
Transport Control Monitoring:
  • Using photo sensors
Environmental Conditions:
  • In operation:
    • Temperature: +10 °C to +40 °C
    • Humidity: 30 % to 70 %
  • In store or during transportation (condensation free, foil-sealed, with desiccant/max 20 h):
    • Temperature: -40 °C to +70 °C
    • Humidity: 10 % to 90 %
Dimensions Cassette only (W x D x H):
  • 300 docs cassette: 260 mm x 155 mm x 120 mm
  • 600 docs cassette: 260 mm x 155 mm x 158 mm
Weight Cassette only:
  • Empty cassette for 300 documents: 3.0 kg
  • Empty cassette for 600 documents: 3.4 kg
Dimensions RS 891 & RA 897-200 (W x D x H):
  • With 300 and 600 docs cassette: 175 mm x 730 mm x 205 mm
Weight RS 891 & RA 897-200:
  • With empty cassette for 300 documents: approx. 13.3 kg
  • With empty cassette for 600 documents: approx. 13.7 kg
Colour:
  • Black
Power and Control:
  • Provided by the scan module RS 891
Approvals:
  • Conforms to:
    • EMC-Guideline 2014/30/EU
      Low-voltage guideline 2014/35/EU
    • Type-approved according to:
      EN60950-1:2006+A11:2009+A1:2010 +A12:2011 (bis 19.06.2019)
    • cCSAUSA according to:
      CSA 60950-1-07, 2nd Edition UL 60950-1, 2nd Edition
    • FCC Part 15

Product videos

REINER RA 897-200 - stacker unit RA897» Switch to the YouTube channel
close

Download

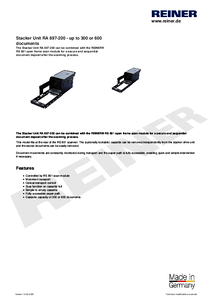

Product datasheet
