Stacker Unit RA 894-030 - with lockable cassette

REINER RA 894-030 - product illustration: RA 894-030

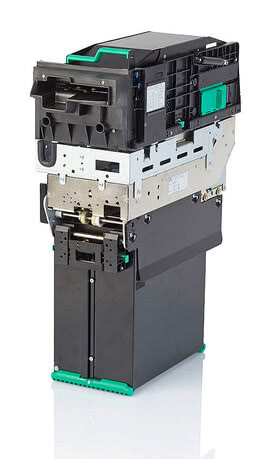

REINER RS 891+RA 894-030 - product illustration: RS 891+RA 894-030
REINER RS 891-4-030 - product illustration: RS 891-4-030
REINER RC 894-1030 - product illustration: RC 894-1030
X
REINER RA 894-030 - product illustration: RA 894-030
REINER RS 891+RA 894-030 - product illustration: RS 891+RA 894-030
REINER RS 891-4-030 - product illustration: RS 891-4-030
REINER RC 894-1030 - product illustration: RC 894-1030

Adds exchangeable cassette for RS 891 and RS 893.

The Stacker RA 894-030 drive unit is an option for both the REINER scan module RS 891 and the bundle feed scanner RS 893 giving a secure and efficient document deposit after the scanning process. Controlled by the scanner, it assures a reliable and orderly storage for up to 1.000 or 2.000 documents within the cassettes RC 894-1030 or RC 894-2030.

The cassette RC 894-1030 is lockable and can be removed easily from the stacker unit drive. As it is removed from the stacker its upper opening self-locks securely, enabling use with an unsupervised security transport company. Alternatively the cassette door can be unlocked for emptying by local bank staff. Any attempt to open the cassette without a key will show visible damage.

The mechanical integration of the RA 894-030 is fully compatible with the earlier RA 894-015 model.

Features

  • Controlled by RS 891 or RS 893 scan modules
  • Motorized transport
  • Optical transport control
  • Fully accessible paper path
  • Warning function on cassette full
  • Self-locking cassette with
    • Reduced weight: 3.6 Kg (1.000 docs cassette, empty)
    • Indicator for cassette “closed/open”
    • Eyehook for security seal available
    • Improved ergonomics of cassette handling process
  • Cassette capacity of 1.000 or 2.000 documents

Technical Data

Document Specifications:
  • Height: 70 mm to 112 mm
  • Length: 127 mm to 220 mm
  • Weight: 70 to 120 g/m²
  • Thickness: 0.07 mm to 0.15 mm

    Optional: additional paper specifications on demand!
Performance:
  • Between 3 - 5 s/doc (depending on the application process)
Transport Control Monitoring:
  • Using photo sensors
Environmental Conditions:
  • In operation:
    • Temperature: +10 °C to +40 °C
    • Humidity: 30 % to 70 %
  • In store or during transportation (condensation free, foil-sealed, with desiccant/max 20 h):
    • Temperature: -40 °C to +70 °C
    • Humidity: 10 % to 90 %
Dimensions Cassette only (W x D x H):
  • 1.000 docs cassette: 150 mm x 295 mm x 260 mm
  • 2.000 docs cassette: 150 mm x 295 mm x 420 mm
Weight Cassette only:
  • Empty cassette for 1.000 documents: approx. 3.6 kg
  • Empty cassette for 2.000 documents: approx. 4.7 kg
Dimensions RS 891 & RA 894-030 (W x D x H):
  • With 1.000 docs cassette: 165 mm x 375 mm x 530 mm
  • With 2.000 docs cassette: 165 mm x 375 mm x 690 mm
  • For mechanical integration in combination with RS 893 + RR 895 required width: 175 mm (with either cassette)
Weight RS 891 & RA 894-030:
  • With empty cassette for 1.000 documents: approx. 15.9 kg
  • With empty cassette for 2.000 documents: approx. 17 kg
Colour:
  • Black
Power and Control:
  • Provided by the scanner RS 891 or the bundle scanner RS 893
Approvals:
  • Conforms to:
    • EMC-Guideline 2014/30/EU
      Low-voltage guideline 2014/35/EU
    • Type-approved according to:
      EN60950-1:2006+A11:2009+A1:2010 +A12:2011 (bis 19.06.2019)
    • cCSAUSA according to:
      CSA 60950-1-07, 2nd Edition UL 60950-1, 2nd Edition
    • FCC Part 15

Product videos

REINER RA 894-030 - application: stacker unit RA894 - for up to 2.000 documents» Switch to the YouTube channel
close

Download

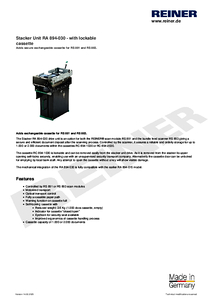

Product datasheet
