Scanner RS 891 - Single Feed Scanner
1909 Reiner Stempel Produkt 2 25 Kopie
REINER RS 891 - product illustration: RS 891, Single Feed Scanner, ATM Scanner
made in germany.jpg
  • Accepts crumpled, torn, mutilated cheques
  • Customisable in-feed tray
  • Shutter
  • Document sensor in front of shutter
  • Front camera optionally upgradeable to colour/UV/IR
  • Mechanical and electronic document alignment
  • Document transport control
  • Position sensor
  • Double feed sensor
  • Rear-side inkjet endorser for alphanumeric text
  • MICR reader
  • USB 2.0 interface
  • Fully accessible paper path
The open-frame scan module RS 891 integrates easily into Self-Service Kiosks and ATMs.

The single-sheet scan module RS 891 brings reliable and efficient document input to the self-service area. The device reacts when paper is inserted and starts processing automatically.

The REINER® RS 891 has cameras for both sides producing colour, greyscale and black/white images. And the front-side colour camera can be upgraded to add UV and IR image channels. For cheques with magnetic code-lines (E13B and CMC7), the MICR head reads the data and delivers this to the application alongside the image(s). A rear-side endorser is standard and a front-side roller stamp option is available.

Technical Data

Document Specifications:
  • Width: 60 mm to 112 mm
  • Length: 127 mm to 220 mm
  • Weight: 70 to 120 g/m²
  • Thickness: 0.07 mm to 0.15 mm

    Optional: additional paper specifications on demand!
  • Scan speed contingent upon chosen image resolution:
    • Greyscale (8Bit): up to 600 mm/s
    • Full colour (24Bit): up to 200 mm/s
  • Transport speed: 500 mm/s
  • Double-feed detection by thickness measurement
Image Capture System:
  • Two colour cameras (CIS) for front and rear sides
  • Scan width: 107.69 mm
  • Image resolution: 100, 200, 300 dpi
  • Electronic colour filters: red, green, blue
  • Image output: 1-bit b/w up to 24 bit colour
  • Image formats: .bmp, .jpg, TIFF G4
Magnetic Reader:
  • For magnetic code lines (CMC7 or E13B)
  • Inkjet printer after the rear side camera
  • Horizontal resolution: 7, 10 or 14 cpi
  • Font height: 3.2 mm
  • Font: similar to OCR-B
  • Up to 80 characters can be printed
  • Print position: 53 mm from document lower edge
  • USB 2.0
  • API Interface for Windows 2000, Windows XP, Windows Vista,
    Win7, Win8, Win10
  • Linux
  • WHQL certified
  • IQA-API available
  • XFS Service Provider available
  • J-XFS Service Provider available
  • Remote Firmware Update
Environmental Conditions:
  • During operation:
    • Temperature: +10 °C to +40 °C
    • Humidity: 30 % to 70 %
  • In store or during transportation (condensation free, foil-sealed, with desiccant/max 20 h):
    • Temperature: -40 °C to +70 °C
    • Humidity: 10 % to 90 %
Dimensions without in-feed tray and adapter plate (W x D x H):
  • 165 mm x 375 mm x 140 mm
  • 5,0 kg
  • Black
  • 24 V DC; < 3 A (Power supply option: 100 … 240 VAC)
  • Approx. 62 dBA
  • Conforms to:
    • EMC-Guideline 2014/30/EU
      Low-voltage guideline 2014/35/EU
    • Type-approved according to:
    • cCSAUSA according to:
      CSA 60950-1-07, 2nd Edition UL 60950-1, 2nd Edition
    • FCC Part 15
  • Front side colour CIS camera with additional ultra-violet and/or infra-red channels
  • Stacker unit RA 894 for up to 1.000 or 2.000 documents, optionally lockable
  • Stacker unit RA 897 for up to 300 or 600 documents, lockable
  • External power supply
  • Customizable document in-feed tray and adapter plate

    Other models available!
You are here:

Advantages at a glance

kzg made in germany flag.svg
Made in Germany

One of the few manufacturers that produces all product lines "Made in Germany" is REINER®.
alles aus einer hand.svg
Everything from one source

From design to toolmaking of fine blanking dies and forming tools to all relevant manufacturing processes.

The REINER® quality system has been certified according to DIN EN ISO 9001 since 2001.

Over 100 years of experience

At the company's headquarters in Furtwangen, innovative products have been created with Black Forest precision for over 100 years that are in demand worldwide.

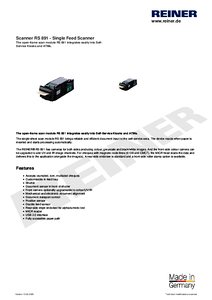

Product datasheet RS 891 en00
