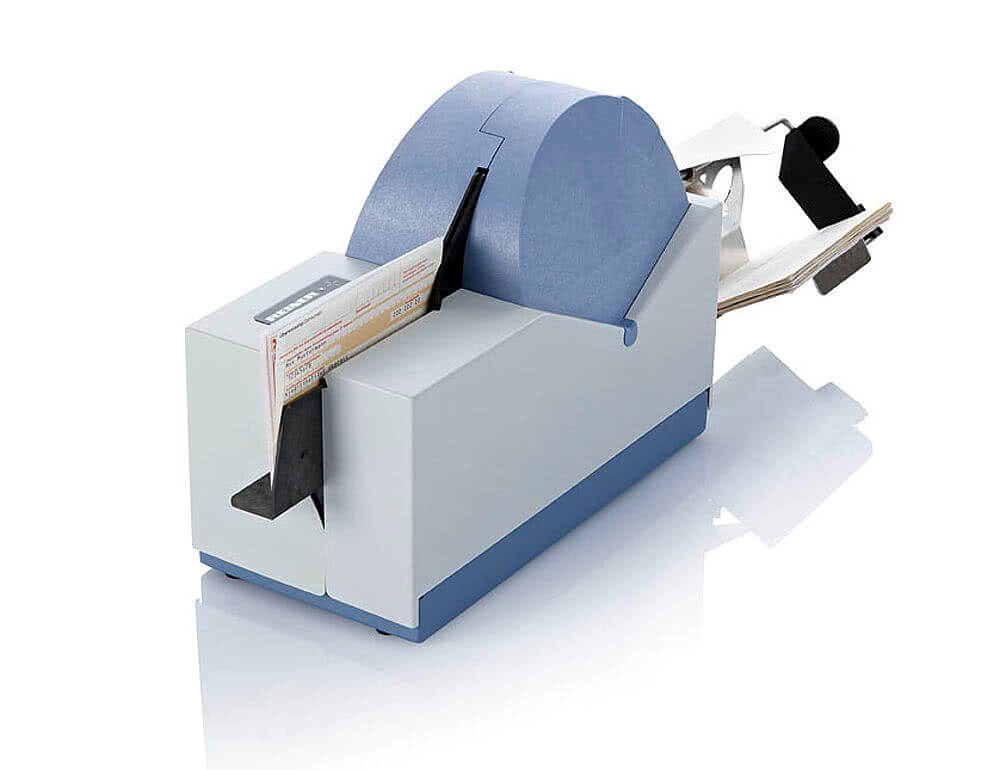

Model RS 863/864 - Bulk desktop scanner
For fast batch processing of cheques, prescriptions, payments, coupons and any other small-format documents.
These devices combine speed and flexibility in an unusually compact design, for problem-free processing of up to 8000 documents per hour.
The RS 863/864 scanners are equipped with front and rear colour cameras producing images in full colour, greyscale, and black-and-white. MICR codelines (CMC7 and E13B) are read with the MICR read-head and documents can be endorsed on the rear with the alphanumeric inkjet printer.
Their straight-through document path, robust build and high-quality precision engineering assure a high level of operational reliability.
- Auto feeder
- Double feed detection

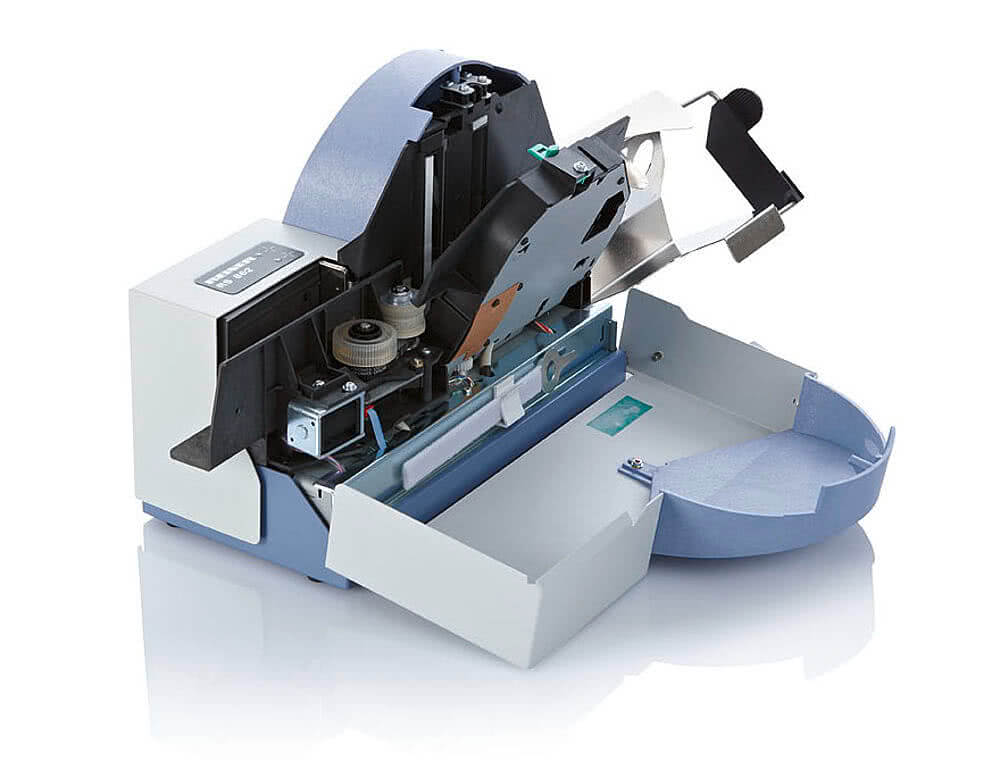

- Fully accessible straight paper path transport
- Front & back colour cameras
- MICR reader
- Manual or automatic scan start
- Paper path monitoring
- Inkjet endorser
- USB 2.0 interface
- TWAIN and API software interface
|Paper Path Monitoring:|
|Image Capture System:|
|Dimensions (L x W x H):|
add to the collective download remove from collective download
If the TWAIN driver is loaded first time it searches for the file .INI-file. There three different .INI-files:
• RS86u.INI for all RS 86x-scanners with USB-interface
• RS86x.INI for the RS 861and RS 862 with SCSI-interface and
• RS86m.INI for the RS 863 and RS 864 with SCSI-interface.
The .INI-file contains most of the TWAIN settings. If it doesn´t exist the TWAIN default settings are used. If an .INI-file doesn´t exist, it is generated in the WINDOWs- folder if the TWAIN driver is closed. In case it exists, the current TWAIN settings are stored there at closing time. If the TWAIN driver is opened again the TWAIN-settings are loaded from respective .INI-file.
The double-feed-control ON/OFF is not stored in the file .INI-files. Per default it is always switched ON. It can be switched OFF only by using the TWAIN interface (see CUSTOMDSDATA).
How can the font type of the endorser be set?
There are no TWAIN-API functions for setting the font type. Therefore the font-type can be set in the file RS86u.INI. The parameter “ENDORSERTYPEFACE=x” defines font-type. x may have the following values:
• 1 = 14 CPI
• 2 = 7 CPI bold type
• 3 = 7 CPI.
This happens if the feeder is empty. On the event DG_IMAGE,DAT_PENDIGNCFERS,MSG_ENDXFER is not always known, whether the feeder is really empty.
Set the entry “LOGFILE=path/logfilename.log” in the RS86u.INI file. When the TWAIN driver is opened the above defined file is generated and data is logged in ASCII format.
„Failure MSG_ENABLEDS, Low Memory Condition encountered, free up some memory and try again”
This error-message is generated by the REINER® TWAIN-driver in case it issues the UserInterfacedialog “CreateDialog()” to the TWAIN_32.DLL and gets back an NULL-handle. Therefore check the version of the TWAIN_32.DLL. Under Windows XP it should be 22.214.171.124.
Under Windows it is not possible to use the Help-function within the TWAIN window.
To be able to use the HELP function within the RS 900 or RS 86x TWAIN window, Winhlp32.exe is required. This program displays 32-bit Help files that have the “.hlp” file name extension. To view .hlp files on Windows Vista, you need to install this application. Please click here.
If you have any other problems, please send an email to firstname.lastname@example.org.
Per default all the scanner errors are logged In the file EVENTLOG file. To switch this function OFF in the RS86u.INI file under [SETTINGS] the entry “EVENT_LOG=0” must be generated.
• 100 x 100 dpi greyscale both sides: 420 mm/s and 140 docs/min
• 100 x 100 dpi fullcolor both sides: 210 mm/s and 70 docs/min
• 200 x 200 dpi greyscale both sides: 210 mm/s and 70 docs/min
• 200 x 200 dpi color/filter both sides (e.g. 200 dpi red/ 100 dpi green/ 100 dpi blue): 105 mm/s and 35 docs/min
• 200 x 200 dpi fullcolor (200 dpi red /200 dpi green/ 200 dpi blue): 70 mm/s and 22 docs/min
• 200 x 200 dpi black/white Frontside and 100 x 100 dpi fullcolor both sides: 105 mm/s and 35 docs/min
• Clear document track: 250 mm/s
Please check the version of the used ASPI driver. Use only the version 4.57. All other drivers from Adaptec (e.g. 4.71) do have memory league problems. This applies not only for Windows XP but also for Windows Vista.
Applicable only for SCSI environments with Adaptec cards!
