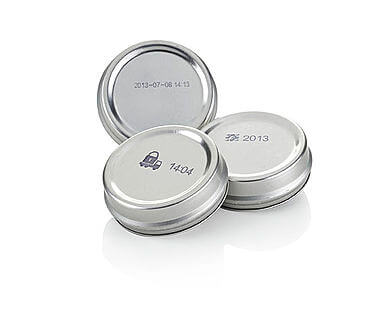

REINER jetStamp 970 - application example: print on metals - small objects - cans
X
REINER jetStamp graphic 970 - product illustration: jetStamp graphic 970 in the base station
REINER jetStamp 970 - application example: print on plastics and metals - small objects - curved surfaces
REINER jetStamp 970 - application example: print on paper and cardboard - envelopes
REINER jetStamp 970 - Software: PCsetgraphic for jetStamp 970
REINER jetStamp 970 - application example: print on plastics, paper and cardboard - curved surfaces - envelopes
REINER jetStamp 970 - application example: print on Plastics - curved surfaces
REINER jetStamp 970 - application example: print on plastics and metals - small objects - curved surfaces
REINER jetStamp 970 - application example: print on metals - small objects - cans
The jetStamp graphic 970 is a hand-held inkjet printer that marks documents and or products simply and quickly. In addition to number, date, time and text, this device can also print graphics and barcodes. With the MP ink, it is also possible to print on non-absorbent surfaces such as metal and plastic. The 970 is mobile, handy and easy to operate and program. It comes complete with its own software and weighs just over 1 pound.

Description

  • Number, date, time, text and graphics and barcodes
  • Automatic advancing numbering and dating barcode
  • Up to four different print images can be stored in the 970
  • Print image can be created simply and quickly at the PC and transmitted via USB or Bluetooth
  • Since the 970 is operated with rechargeable batteries, it can be taken to the goods to be marked quickly, easily and on the go
  • Your choice of regular ink for paper or cardboard or our specially formulated MP ink for marking on non-absorbent surfaces such as metal and plastic
  • The MP ink dries quickly, is smear resistant and is great for marking consumer products such as food packaging and bottles
  • Max. print area dimensions: (W x H) 65 mm (2 ½”) x 12.7 mm (½”)
Pos.Sample PrintsA ↕
Pos. 224jetStamp graphic 970; Pos.: Pos. 224; 12.7 mm (72dpi)12.7 mm
Pos. 225jetStamp graphic 970; Pos.: Pos. 225; 12.7 mm (72dpi)12.7 mm
Pos. 226jetStamp graphic 970; Pos.: Pos. 226; 12.7 mm (72dpi)12.7 mm
Pos. 227jetStamp graphic 970; Pos.: Pos. 227; 12.7 mm (72dpi)12.7 mm

Technical Data

Dimensions (L x W x H ):140 x 160 x 85
Dimensions base station (L x W x H ):155 x 140 x 30
Weight:approx. 520 g
Print technology:inkjet
Max. print area dimension (W x H):65 x 12,7
Max. print speed:< 1 s/print
Print resolution:300 dpi
Battery capacity:up to 1.000 pints

Application images

Marking on metal surfaces - graphics, barcode, batch number
Marking on metal surfaces - graphics, barcode, batch number
print on metals - small objects - exact placement possible
print on metals - small objects - exact placement possible

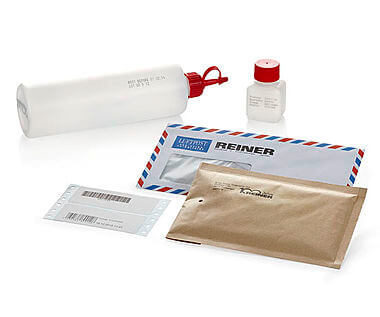

print on plastics, paper and cardboard
print on plastics, paper and cardboard

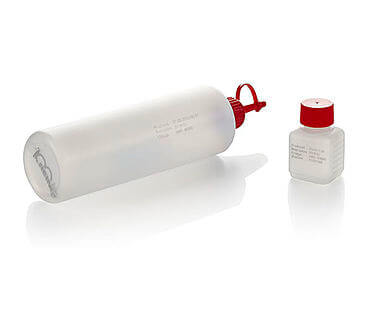

print on plastics - curved surfaces
print on plastics - curved surfaces
Imprint on smooth surfaces, small objects - expiry date BBD
Imprint on smooth surfaces, small objects - expiry date BBD
Direct printing on small packaging - manufacturing date and best before date
Direct printing on small packaging - manufacturing date and best before date
Imprint on packaging and label - date of manufacture, expiry date
Imprint on packaging and label - date of manufacture, expiry date
Printing in free fields of labels - packaging label with date
Printing in free fields of labels - packaging label with date
print on packaging, bins, parts - batch number
print on packaging, bins, parts - batch number

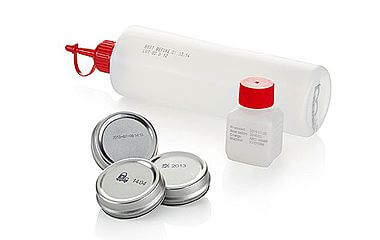

print on plastics and metals - small objects - curved surfaces
print on plastics and metals - small objects - curved surfaces

Product videos

Application film:
Reiner jetStamp 970 - integrated in the logistics process - simply via the Windows printer driver!


A barcode is scanned in, compared in a database, the assigned information then printed as a print job directly on the mobile inkjet printer. Whether production or trade - large-scale industry, medium-sized companies or micro-enterprises: Simplified secure processes in incoming goods, warehouses, production or dispatch are gladly accepted. In conjunction with a simple software application, workflows can be further optimized, simplified, accelerated, ...!» Switch to the YouTube channel


Application movie:
Continuously print barcodes for (serial) numbers, time and date - all mobile and always accurate!


Each barcode can be generated variably and automatically, the counting function is carried out by the device itself. During printing, both the current barcode and the plain text of the code are printed - "readable" at any time. Three barcode types are available - Interleaved 2/5, Code 39 and Code 128 B.» Switch to the YouTube channel


Optical Quick Start Guide:
REINER jetStamp graphic 970 - easy commissioning: in just a few steps to the first mobile inkjet imprint!


Before use, the batteries and the REINER print cartridge are inserted. Connected to a computer, the required imprints are created and transferred to the jetStamp 970 via the supplied PCset graphic software. That's it: mobile labeling and marking can begin!» Switch to the YouTube channel


Optical Quick Start Guide:
Changing P3 Ink Cartridges and Ink-Specific Sealing Lips - Turning from Standard Ink P3-S to Fast-Drying Ink P3-MP3!


REINER offers different types of ink and ink colors. In the case of a change of the ink type on a Reiner identification device also the exchange of the sealing lip in the base station becomes necessary.
It is just as easy as changing the print cartridge itself with the replacement of the seal. A color guide system helps you to change the types of ink on one device - RED indicates "standard ink" and BLUE stands for "fast-drying ink"!» Switch to the YouTube channel

Download

Product datasheet
Operating instructions
Software
REINER jetStamp 970 - Software: PCset graphic V5.10 Build 0003downloadadd to the collective download remove from collective download
PREMIUM Advertising material
PREMIUM Product images
PREMIUM Sample Prints
PREMIUM Accessories

Accessories

Cartridge inkjet P3-S-BK - for paper or cardboard

Suitable for: jetStamp graphic 970

947100 000
Order-N°:947100-000
Color:black
Pieces:1

Cartridge inkjet P3-S-MG - for paper or cardboard

Suitable for: jetStamp graphic 970

947100 002
Order-N°:947100-002
Color:magenta
Pieces:1

Cartridge inkjet P3-MP3-BK - for metal and plastics

Suitable for: jetStamp graphic 970

947100 120
Order-N°:947100-120
Color:black
Pieces:1

Cartridge inkjet P3-MP5-UV - invisible

Suitable for: jetStamp graphic 970

947100 140
Order-N°:947100-140
Color:invisible (orange under UV light)
Pieces:1

Similar products

REINER 940

Number, date, time, text and graphics and barcodes: max. print area dimension: (W x H) 140 mm (5 ½”) x 12.7 mm (½”)

 REINER 940 - product illustration: REINER 940 - marked quickly and individually - mobile - print graphics and barcode
REINER 940 - sample print: 1D barcode, numbering, date, time
REINER 940 - sample print: 1D barcode, numbering, date, time
REINER 940 - sample print: Date and text

Product details

jetStamp 790 MP

Print on metal and plastic - Battery operation

REINER jetStamp 790 MP - product illustration: prints quickly, quietly - on all flat and uneven surfaces - mobile or stationary - in the base station
REINER jetStamp 790 MP -sample print: Numbering, date
REINER jetStamp 790 MP - sample print: Text, date
REINER jetStamp 790 MP - sample print: Text, numbering, date

Product details

jetStamp 790

Battery operation for added flexibility

Electric Stamp jetStamp 790
REINER jetStamp 790 791 792 MP Nr3
REINER jetStamp 790 791 792 MP Nr7
REINER jetStamp 790 791 792 MP Nr2
REINER jetStamp 790 791 792 MP Nr5

Product details

FAQ

How do I replace the protective nozzle seal in my jetStamp graphic 970?

For a clip with the instructions "Replace protective nozzle seal", here.

For more information on this, see the operating instructions under "Replace protective nozzle seal". The link to the operating instructions is found here.

How can I move the print carriage of my jetStamp graphics 970 to the middle?

> Set setting wheel to position 1.
> Keep the trigger button pushed and take the device out of the basis station.
> The print carriage moves to the middle position.
