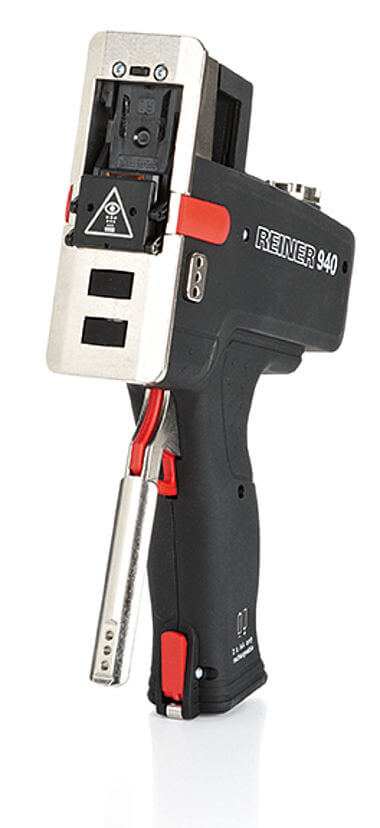

 REINER 940 - product illustration: REINER 940 - marked quickly and individually - mobile - print graphics and barcode

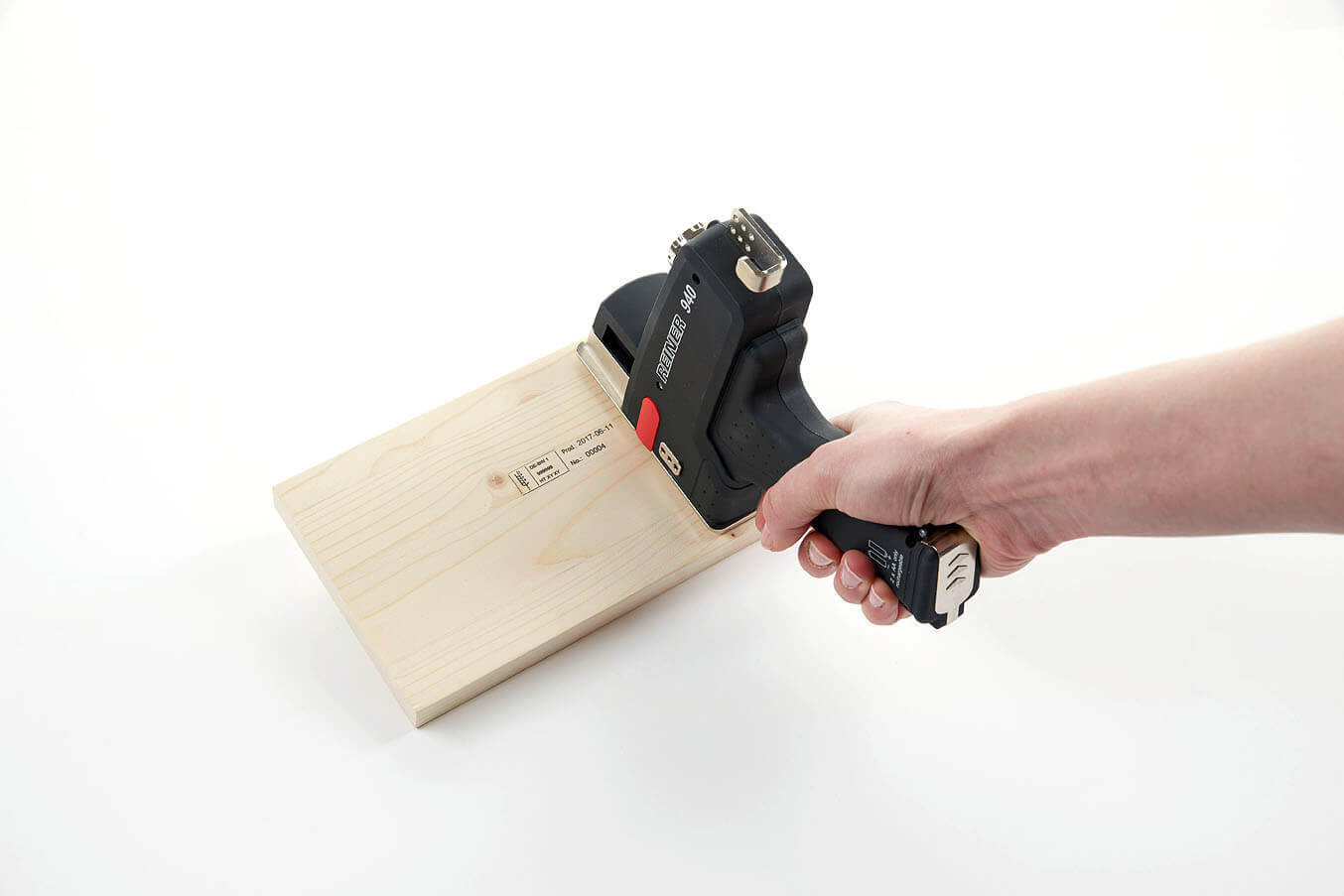

REINER 940 - application: marking on wood
REINER 940 - application: marking on wood

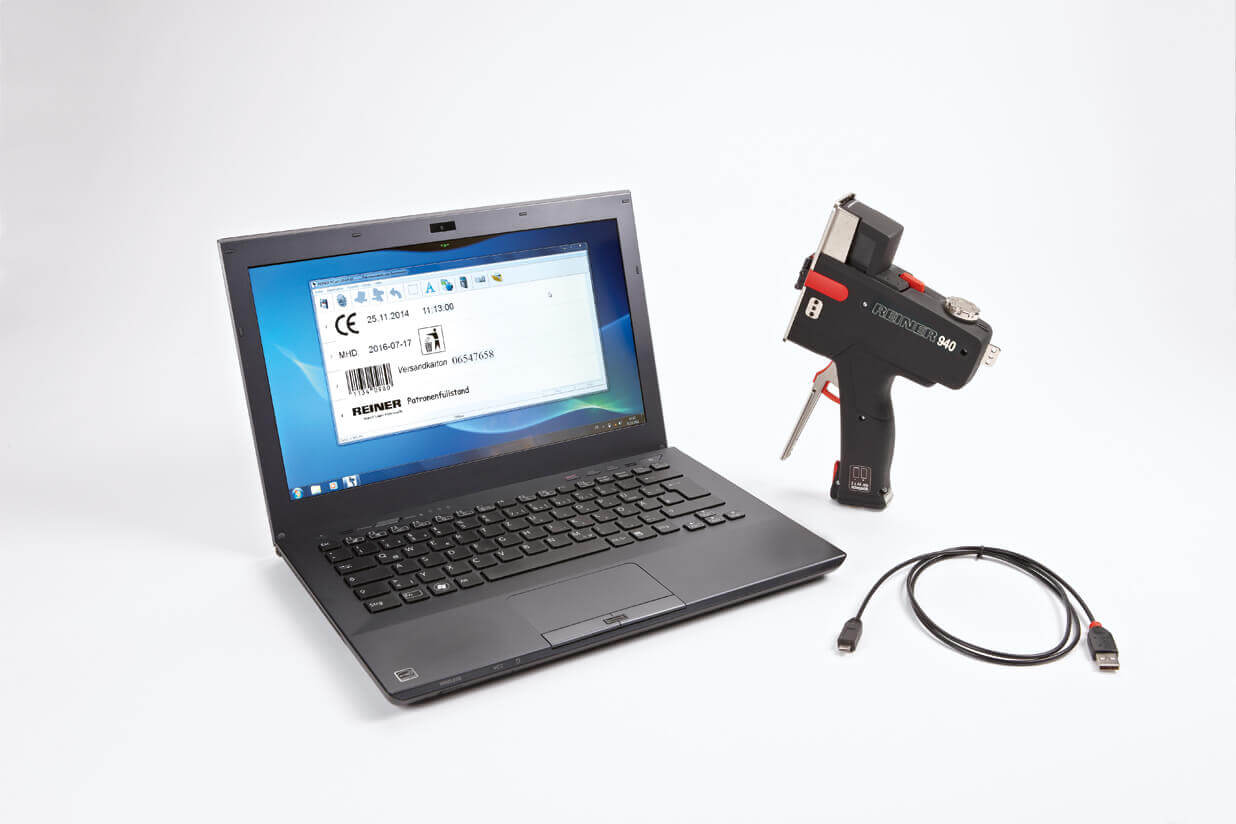

REINER 940 - product: REINER 940 - electric wire - software
REINER 940 - application example: prints on cardboard and wood
REINER 940 - application example: prints on cardboard and wood
REINER 940 - application example: prints on cardboard and paper - large objects
REINER 940 - application: impressions on wood and cardboard - vertical
X
 REINER 940 - product illustration: REINER 940 - marked quickly and individually - mobile - print graphics and barcode
REINER 940 - application: marking on wood
REINER 940 - application: marking on wood
REINER 940 - product: REINER 940 - electric wire - software
REINER 940 - application example: prints on cardboard and wood
REINER 940 - application example: prints on cardboard and wood
REINER 940 - application example: prints on cardboard and paper - large objects
REINER 940 - application: impressions on wood and cardboard - vertical
With the REINER 940, production batches can be marked quickly and individually – mobile. In addition to number, date, time and text, this compact device can also print graphics and barcode.

Description

  • Number, date, time, text and graphics and barcodes, also multi-line prints
  • Automatic advancing numbering and dating barcode
  • Mobile or stationary marking
  • Print on the goods to be marked by rolling the REINER 940 over them, alternatively contactless
  • The quick-drying MP ink facilitates printing on smooth surfaces such as metal and plastic
  • Print image can be created simply and quickly at the PC and transmitted via USB or Bluetooth
  • Integrated capping for print cartridge
  • Up to four different print images can be stored in the system
  • Max. print area dimension: (W x H) 140 mm (5 ½”) x 12.7 mm (½”)
Pos.Sample PrintsA ↕
Pos. 220REINER 940; Pos.: Pos. 220; 12.7 mm (72dpi)12.7 mm
Pos. 221REINER 940; Pos.: Pos. 221; 12.7 mm (72dpi)12.7 mm
Pos. 222REINER 940; Pos.: Pos. 222; 12.7 mm (72dpi)12.7 mm
Pos. 223REINER 940; Pos.: Pos. 223; 12.7 mm (72dpi)12.7 mm

Technical Data

Dimensions (L x W x H ):47 x 147 x 221
Weight:approx. 530 g
Print technology:inkjet
Max. print area dimension (W x H):140 x 12,7
Max. print speed:400 mm/s
Print resolution:300 dpi
Battery capacity:up to 1.000 pints

Application images

REINER 940 Faller 2
REINER Mod  940 Anwendung Papier 5
REINER 940 Faller 1 test
REINER 940 Faller 2
REINER 940 Faller 3
REINER 940 Faller 4

Product videos

Download

Product datasheet
Operating instructions
REINER 940 - accessories: operating instructions - germandownloadadd to the collective download remove from collective download
REINER 940 - accessories: operating manual - englishdownloadadd to the collective download remove from collective download
REINER 940 - accessories: operating instructions - frenshdownloadadd to the collective download remove from collective download
REINER 940 - accessories: operating instructions - spanishdownloadadd to the collective download remove from collective download
REINER 940 - accessories: operating instructions - portuguesedownloadadd to the collective download remove from collective download
REINER 940 - accessories: operating instructions - italiandownloadadd to the collective download remove from collective download
REINER 940 - accessories: operating instructions - polishdownloadadd to the collective download remove from collective download
REINER 940 - accessories: operating manual inkjet cartridge P3-MPdownloadadd to the collective download remove from collective download
REINER 940 - accessories: safety data sheet inkjet cartridge P3-S-MGdownloadadd to the collective download remove from collective download
REINER 940 - accessories: safety data sheet inkjet cartridge P3-MP2-BKdownloadadd to the collective download remove from collective download
REINER 940 - accessories: safety data sheet inkjet cartridge P3-MP3-BKdownloadadd to the collective download remove from collective download
Software
PREMIUM Advertising material
PREMIUM Product images
PREMIUM Sample Prints
PREMIUM Accessories

Accessories

Cartridge inkjet P3-S-BK - for paper or cardboard

Suitable for: REINER 940

947100 000
Order-N°:947100-000
Color:black
Pieces:1

Cartridge inkjet P3-S-MG - for paper or cardboard

Suitable for: REINER 940

947100 002
Order-N°:947100-002
Color:magenta
Pieces:1

Cartridge inkjet P3-MP3-BK - for metal and plastics

Suitable for: REINER 940

947100 120
Order-N°:947100-120
Color:black
Pieces:1

Cartridge inkjet P3-MP5-UV - invisible

Suitable for: REINER 940

947100 140
Order-N°:947100-140
Color:invisible (orange under UV light)
Pieces:1

Similar products

speed-i-Jet 798

Print individual text, consecutive numbers, date and time, and still remain mobile - Pocket format

REINER speed-i-Jet 798 - product: speed-i-Jet 798
REINER speed-i-Jet 798  - sample print: Text, numbering, date
REINER speed-i-Jet 798 - sample print: Text, numbering, date, times
REINER speed-i-Jet 798- sample print: Text, numbering, date
REINER speed-i-Jet 798 - sample print: text
REINER speed-i-Jet 798 - sample print: Text, numbering

Product details

FAQ

How do I replace the protective nozzle seal in my REINER 940?

For a clip with the instruction "Replace protective nozzle seal", see here.

For more information on this, see the operating instructions under "Replace protective nozzle seal". The link to the operating instructions is found here.
